336 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Drive Assembly

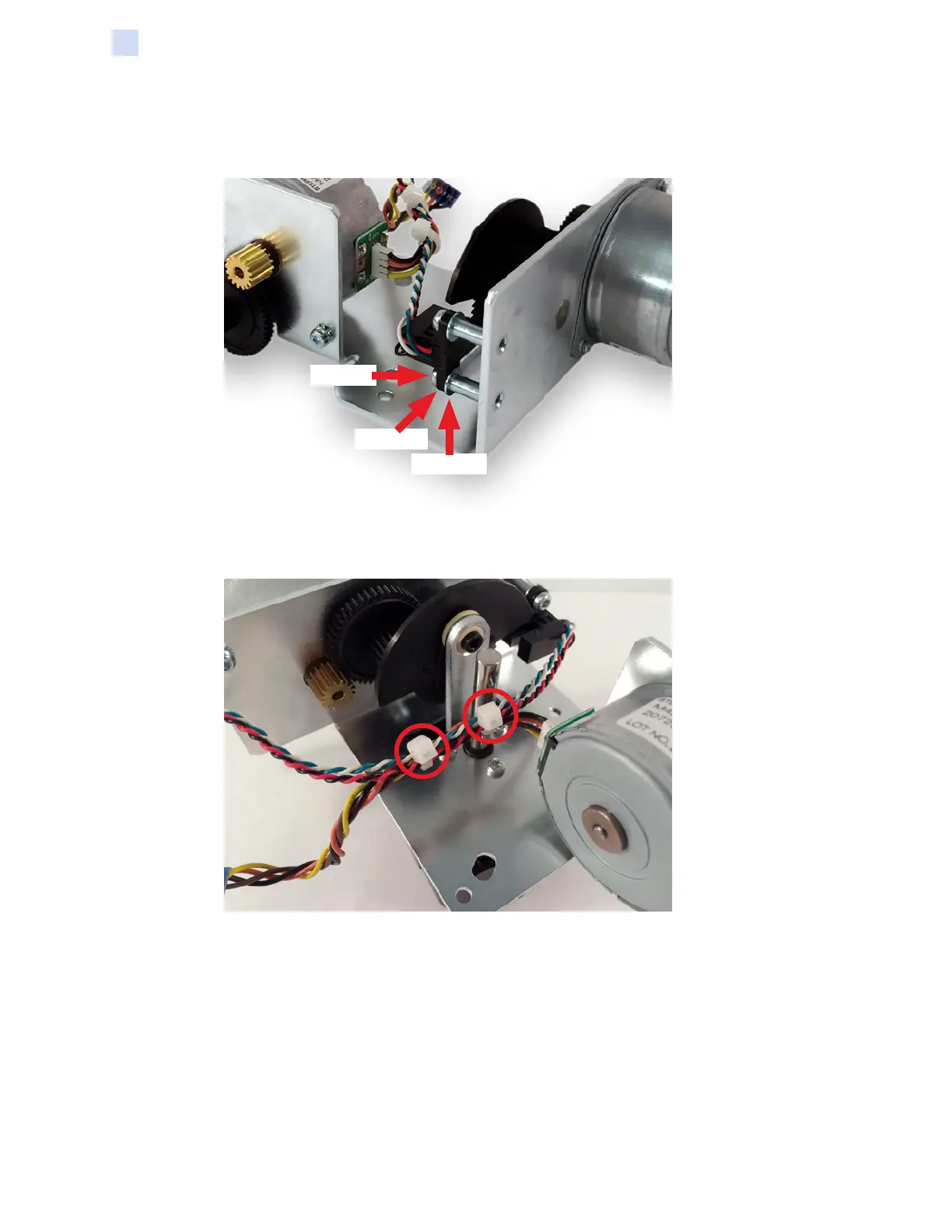

Step 16. Secure the lift cam sensor to the drive assembly—be sure to place the
washer between the sensor housing and the mounting posts on the drive
assembly plate.
WASHER
SENSOR
SCREW
Step 17. Bundle the lift cam sensor cable and the platen motor power cable using
two cable ties.
Step 18. Connect the platen motor control/power cable to J2, and elevator motor
control/power cable to J1 on the PCBA.
Step 19. Connect the lift cam sensor control to J4 on the PCBA.
To Next Page
