Zebra ZXP 7 series

P1036102-007 ZXP Series 7 Card Printer Service Manual 335
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Drive Assembly

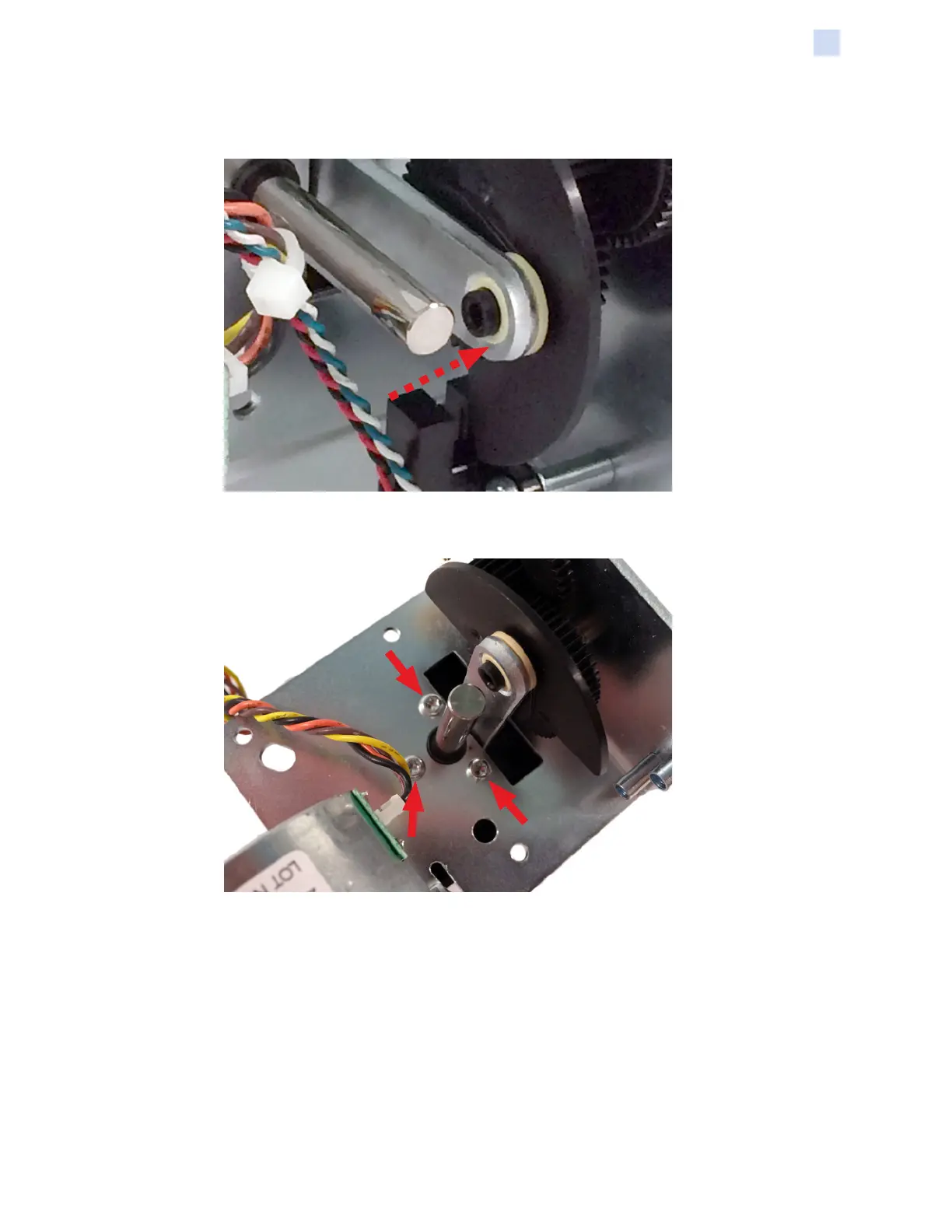

Step 14. Insert the flanged bearing and elevator connecting rod onto the lift cam
post.
Step 15. Secure the elevator assembly to the drive assembly base plate with three (3)
screws.
