334 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Drive Assembly

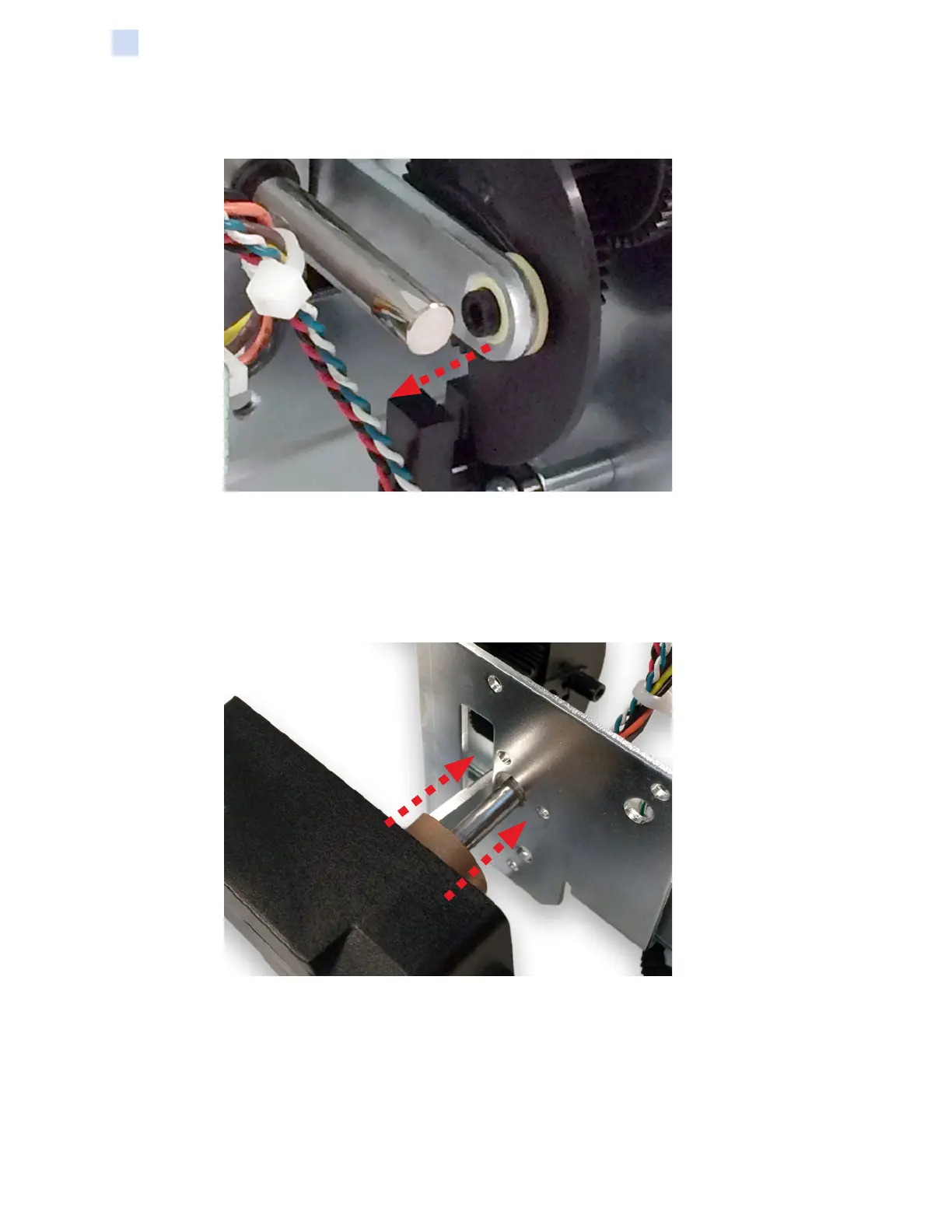

Step 11. Slide the elevator connecting rod and the flanged bearing o from the lift
cam post.
Step 12. Remove the elevator assembly.
Installation
Step 13. Insert the elevator connecting rod and shaft through their respective holes
in the drive assembly base plate.
