348 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Base Housing

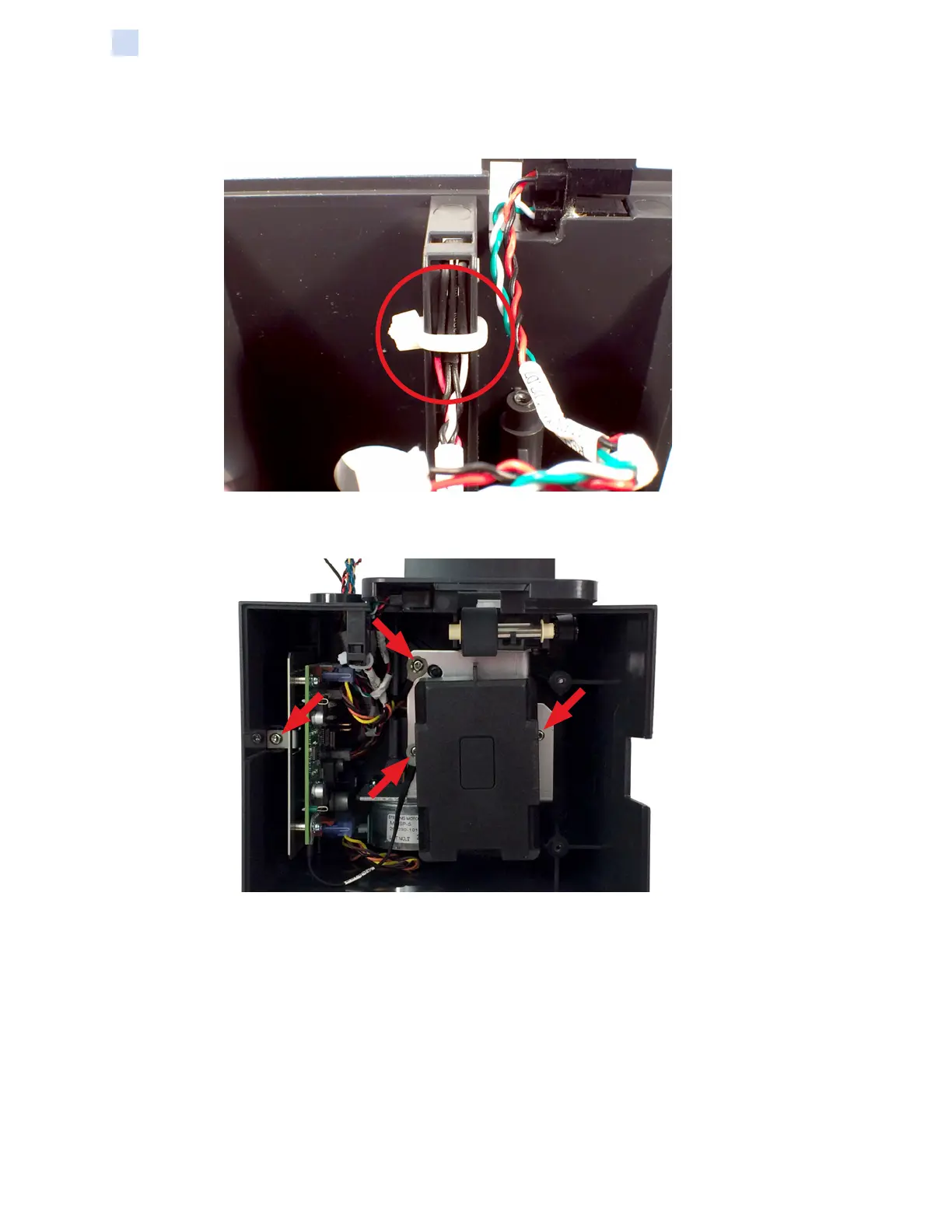

Step 3. Clip the cable tie securing the hopper present sensor to the base housing
and remove the hopper present sensor.
Step 4. Remove the screw securing the PCBA assembly to the base housing, and
the three (3) screws securing the drive assembly to the base housing.
