P1036102-007 ZXP Series 7 Card Printer Service Manual 349

Replacement Procedures for the High-Capacity Output Hopper

Procedures: Base Housing

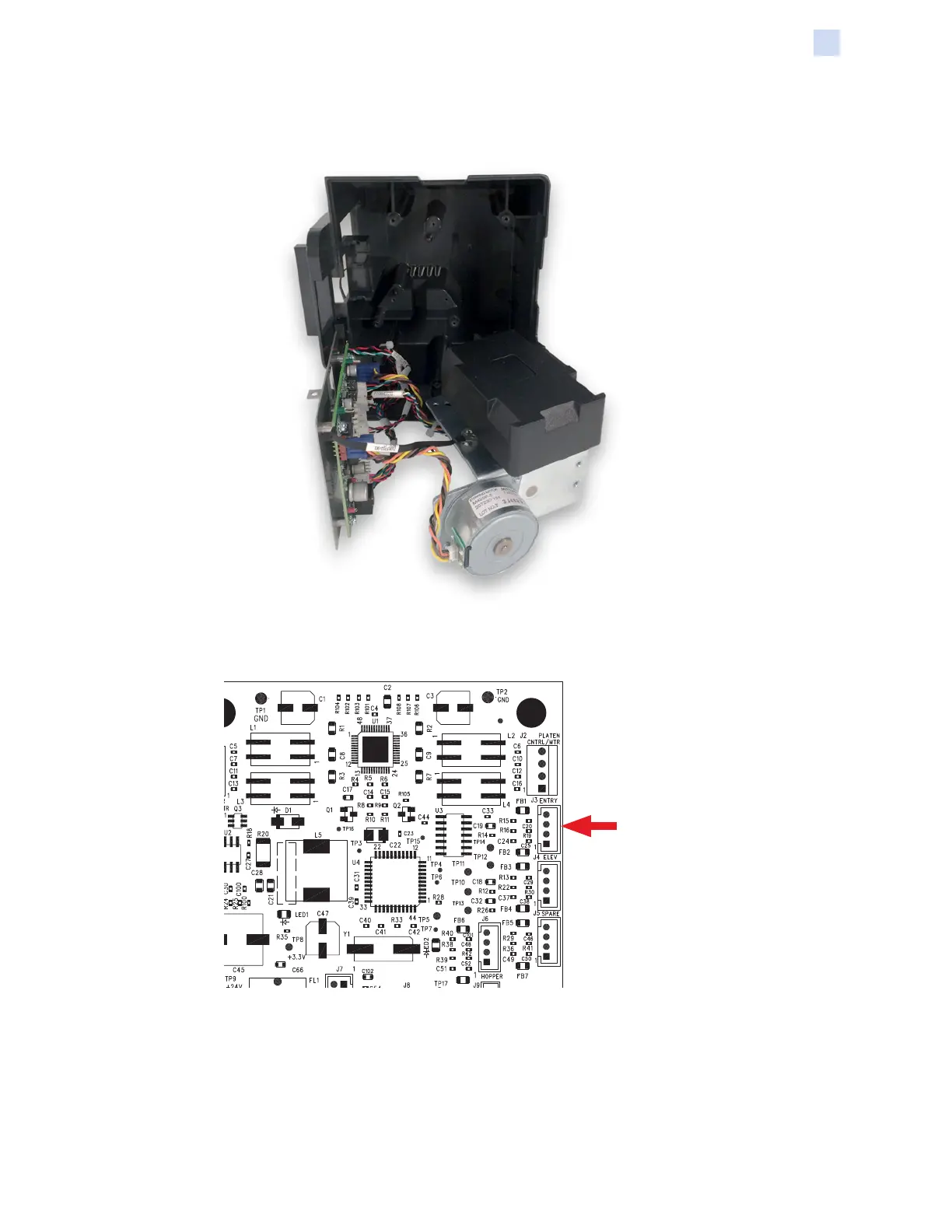

Step 5. Carefully pull the PCBA assembly and the drive assembly out from the base

housing.

Step 6. Disconnect the stacker entry sensor cable from J3 on the PCBA.
