356 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the High-Capacity Output Hopper
Procedures: PCBA

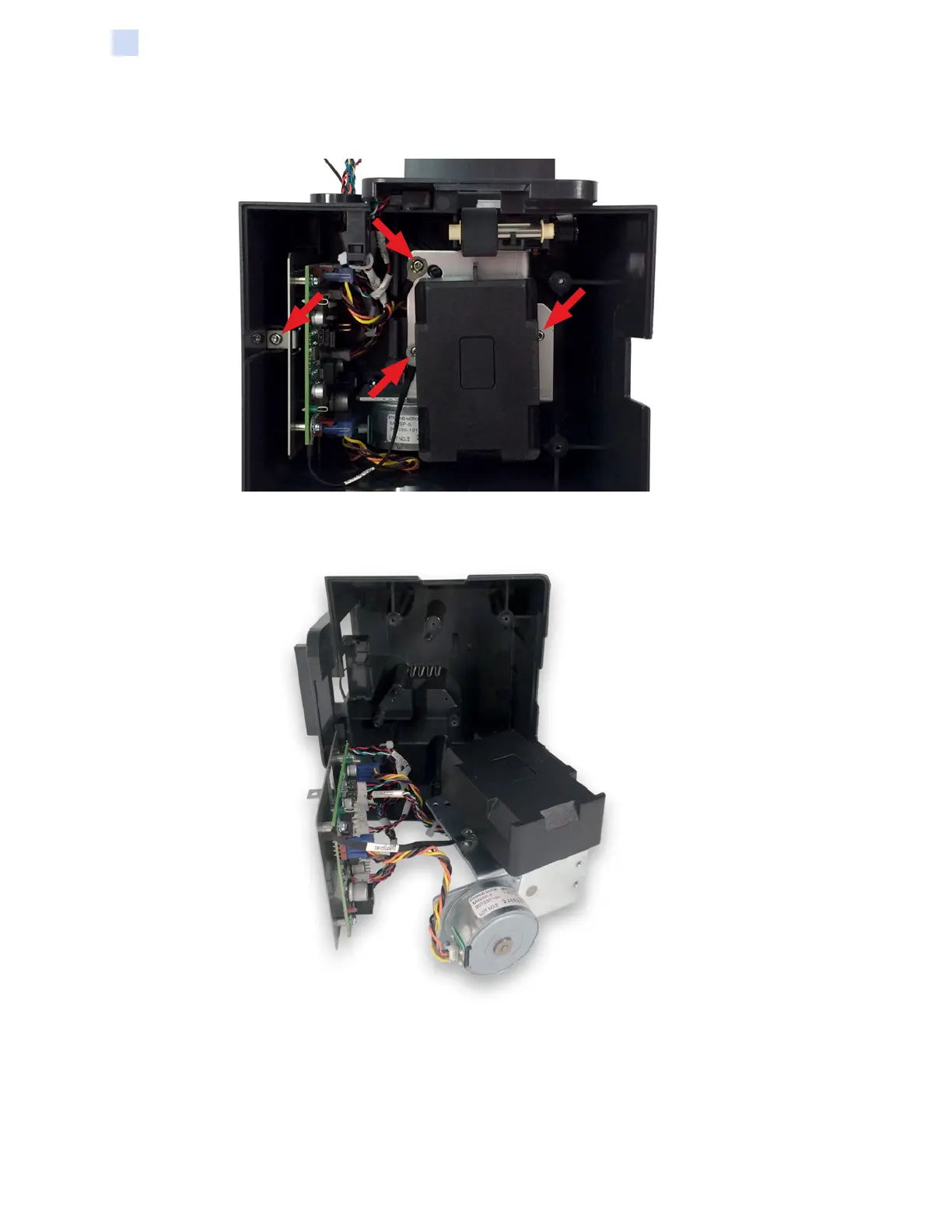

Step 3. Remove the screw securing the PCBA assembly to the base housing, and
the three (3) screws securing the drive assembly to the base housing.
Step 4. Carefully pull the PCBA assembly and the drive assembly out from the base
housing.
Step 5. Disconnect all cables from the PCBA.
