P1036102-007 ZXP Series 7 Card Printer Service Manual 371
Cleaning
Cleaning the Laminator

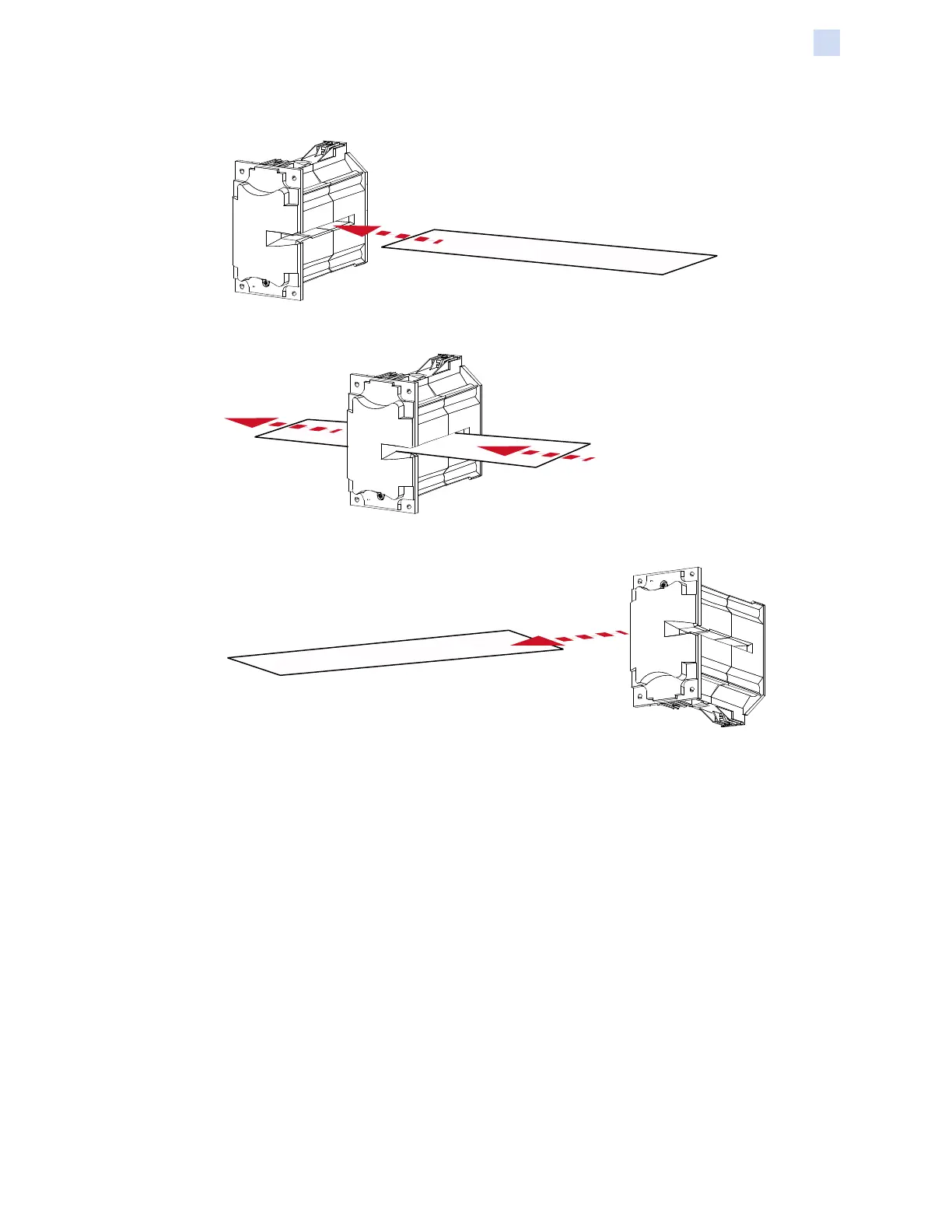

Step 8. Insert the cleaning card between the heater rollers (arrow below).
Step 9. Pull the card all the way through the Heater Assembly.
Step 10. Remove the card from the Heater Assembly.
Step 11. Turn the card over, and repeat Step 8, Step 9, and Step 10.
Step 12. Press Next to conclude the laminator oven cleaning process.
Step 13. The OCP will return to the Clean Printer Menu.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
