P1036102-007 ZXP Series 7 Card Printer Service Manual 35

Replacement Procedures for the Printer

Procedures: Feeder Cartridge

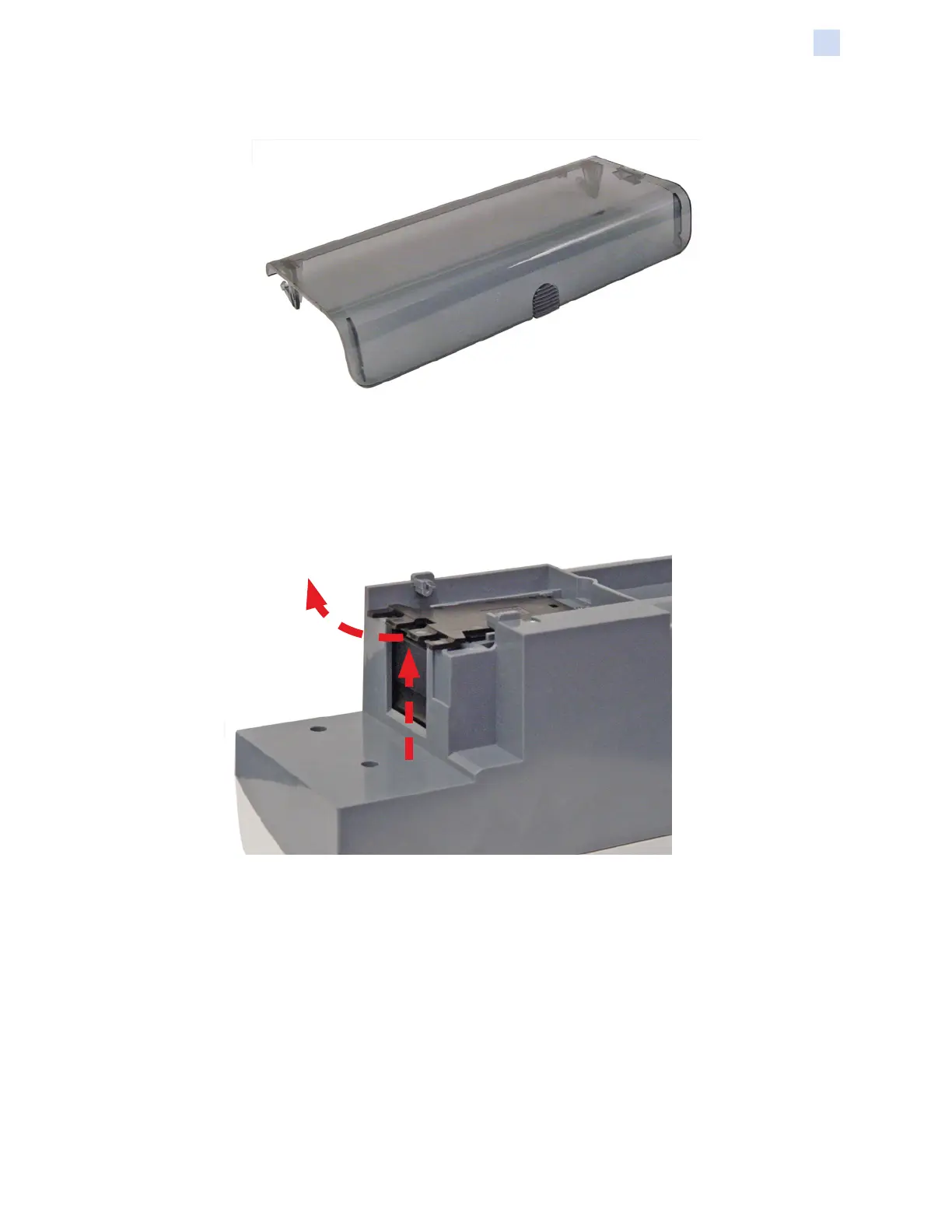

Step 2. Set the Feeder Cartridge Cover aside.

Retainer for Feeder Cartridge

Step 1. Lift the Retainer slightly; then slide it forward, up, and out of the Feeder

Cartridge—see arrows below.
