Zebra ZXP 7 series Service Manual

36 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Feeder Cartridge

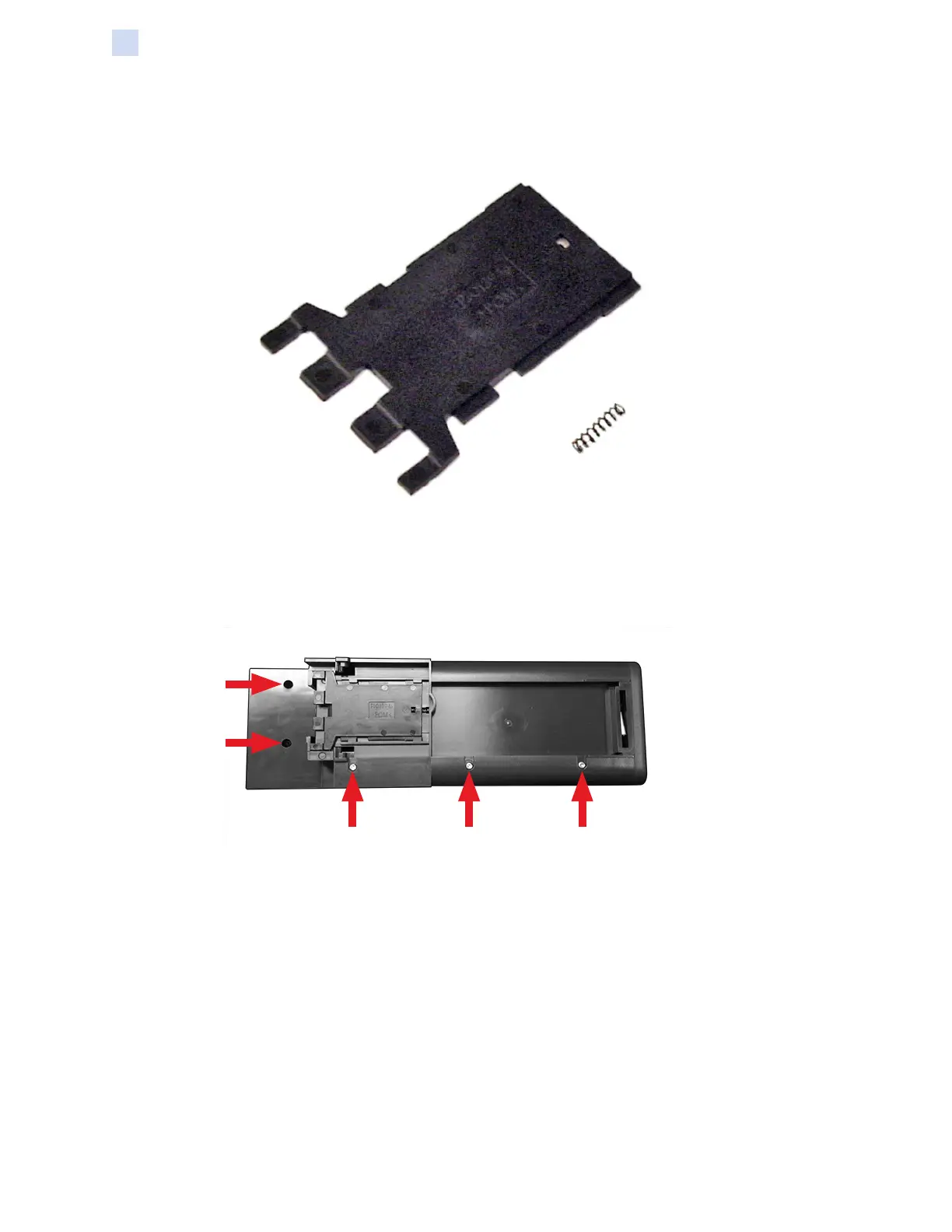

Step 2. Remove the Spring (under the Retainer).
Step 3. Set the Retainer and Spring aside.
Lock Replacement for Security Feeder Cartridge
Step 1. With a TORX T10 driver, remove the five screws on the bottom of the Feeder
Cartridge; arrows below.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
