P1036102-007 ZXP Series 7 Card Printer Service Manual 37
Replacement Procedures for the Printer
Procedures: Feeder Cartridge

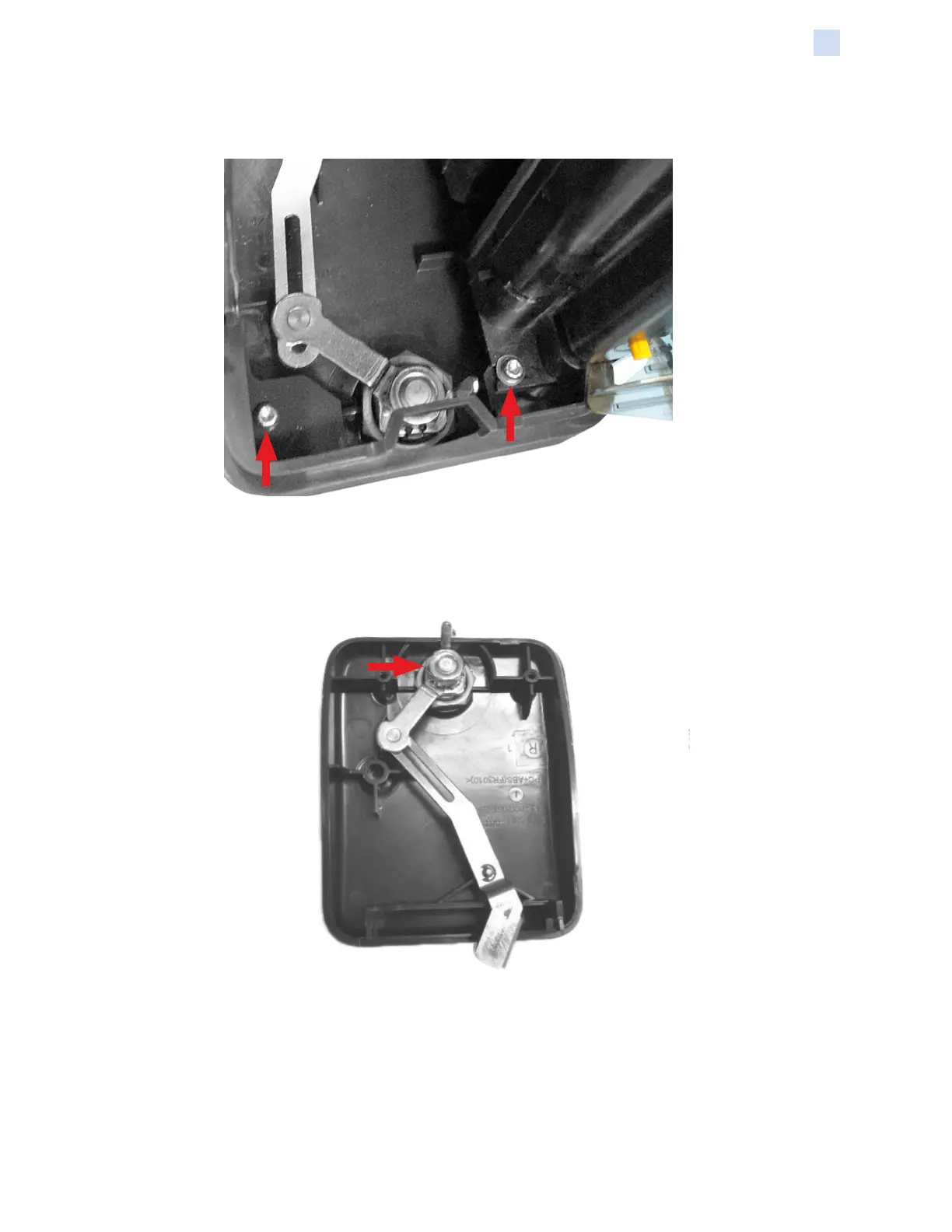

Step 2. With a TORX T10 driver, remove the two screws holding the Side Cover in
place; arrows below.
Step 3. Separate the Feeder Cartridge into its three components: Top Cover, Bottom
Cover, and Side Cover.
Step 4. With an adjustable wrench, remove the small nut from the Lock Assembly in
the Side Cover.
To Next Page
