Replacement Procedures for the Printer
Procedures: Right Cover
Control Panel Door Open Sensor

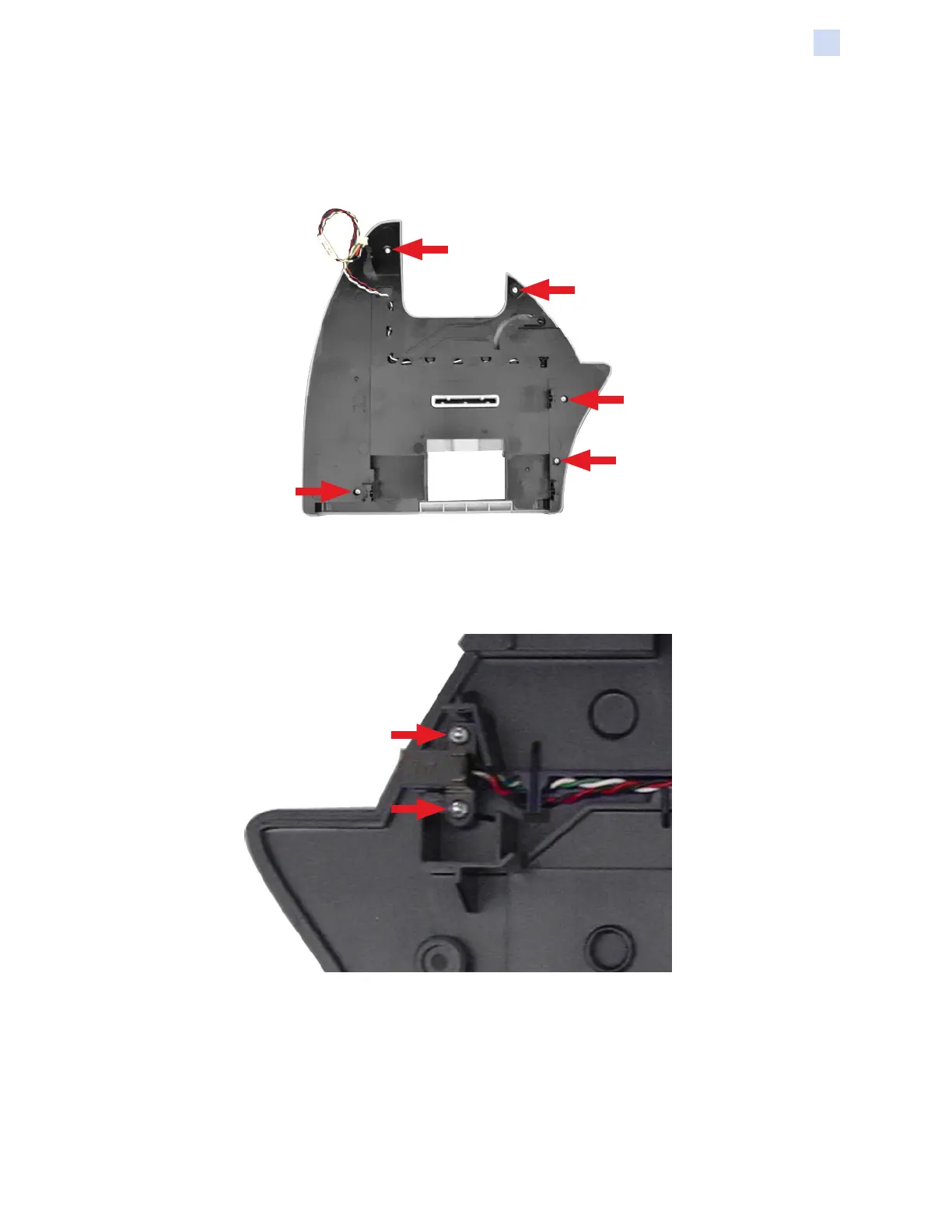

Step 1. With a TORX T10 driver, remove the five screws holding the Inner Cover to
the Right Cover.
Step 2. Remove the Inner Cover.
Step 3. With a TORX T8 driver, remove the two screws holding the Sensor in place;
and set the Sensor (and cable) aside.
