Zebra ZXP 7 series Service Manual

56 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Right Cover

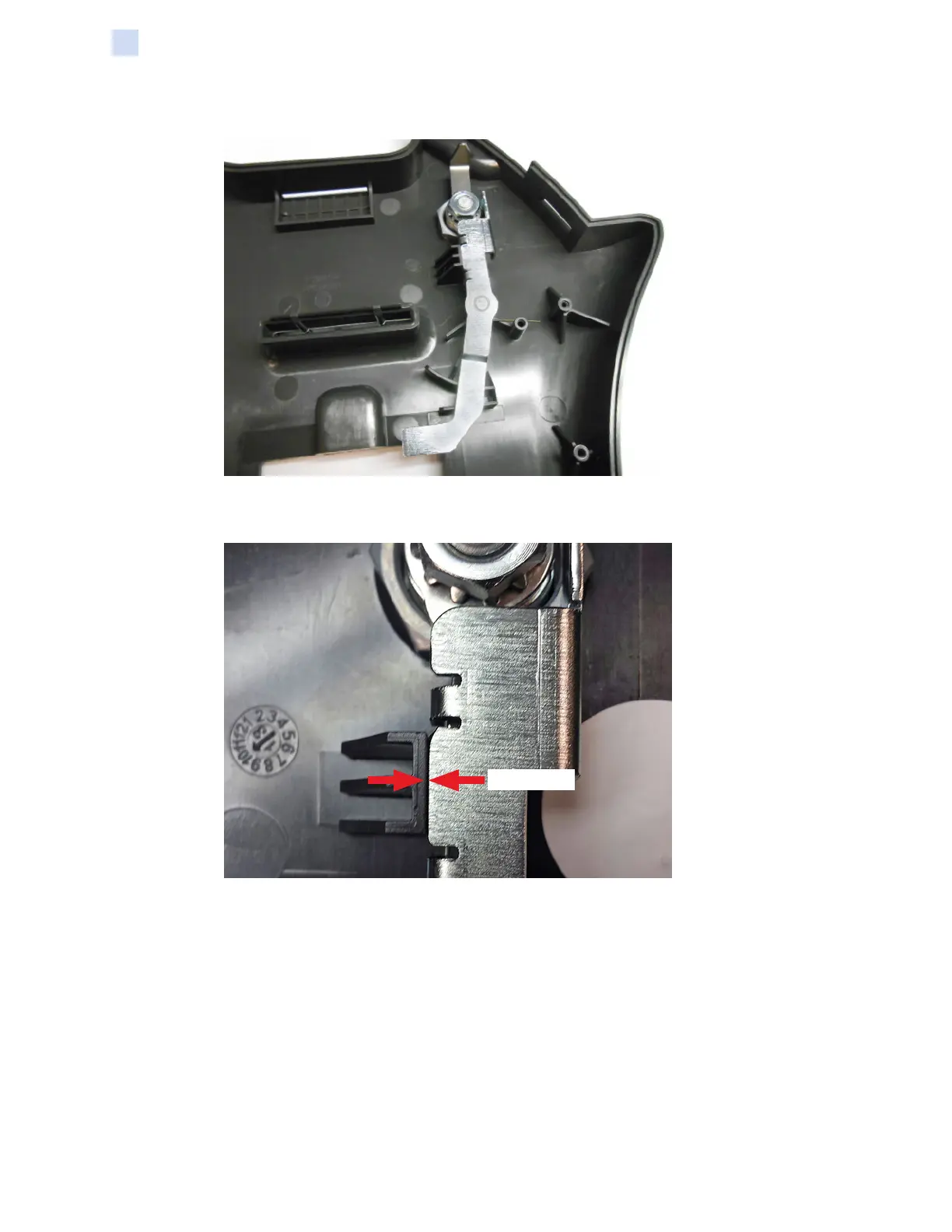

Step 5. Set the Reject Bin Lock Lever in place.
Step 6. Set a 10-mil card between the Reject Bin Lock Lever and the Cover Guide,
arrows below; then tighten the small nut (loosely tightened in Step 3).
10-MIL Gap
Step 7. Remove the 10-mil card.
Step 8. Reassemble the Inner Cover and the Right Cover
