Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 55
Replacement Procedures for the Printer
Procedures: Right Cover
Reassembly

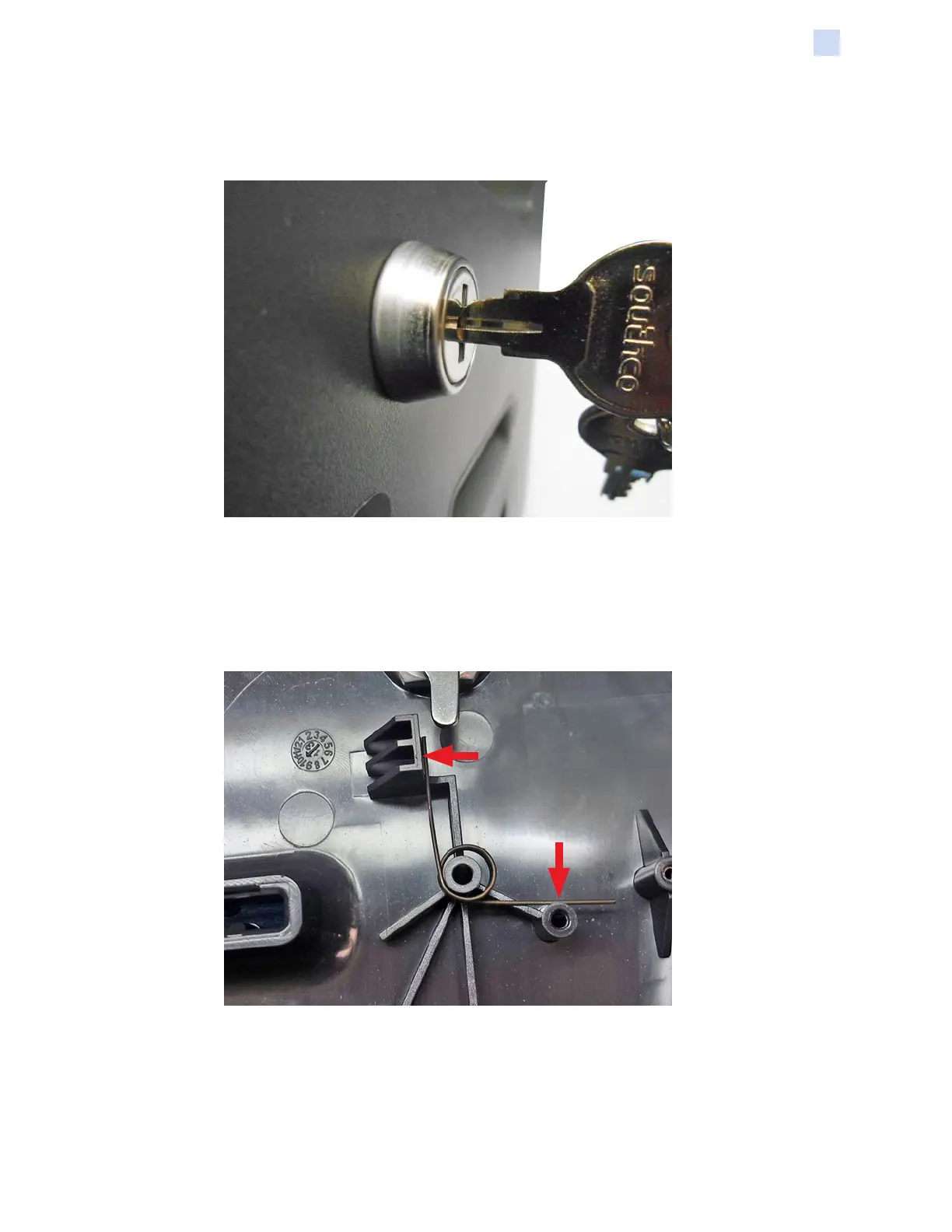

Step 1. Install the replacement lock with key inserted slightly, teeth up.
Step 2. With an adjustable wrench, install and tighten the large nut holding the Lock
Assembly in place.
Step 3. Install the Right Lock Pawl, and install and loosely tighten the small nut
holding the Right Lock Pawl in place.
Step 4. Install the Spring.
