Zebra ZXP 7 series Service Manual

54 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Right Cover

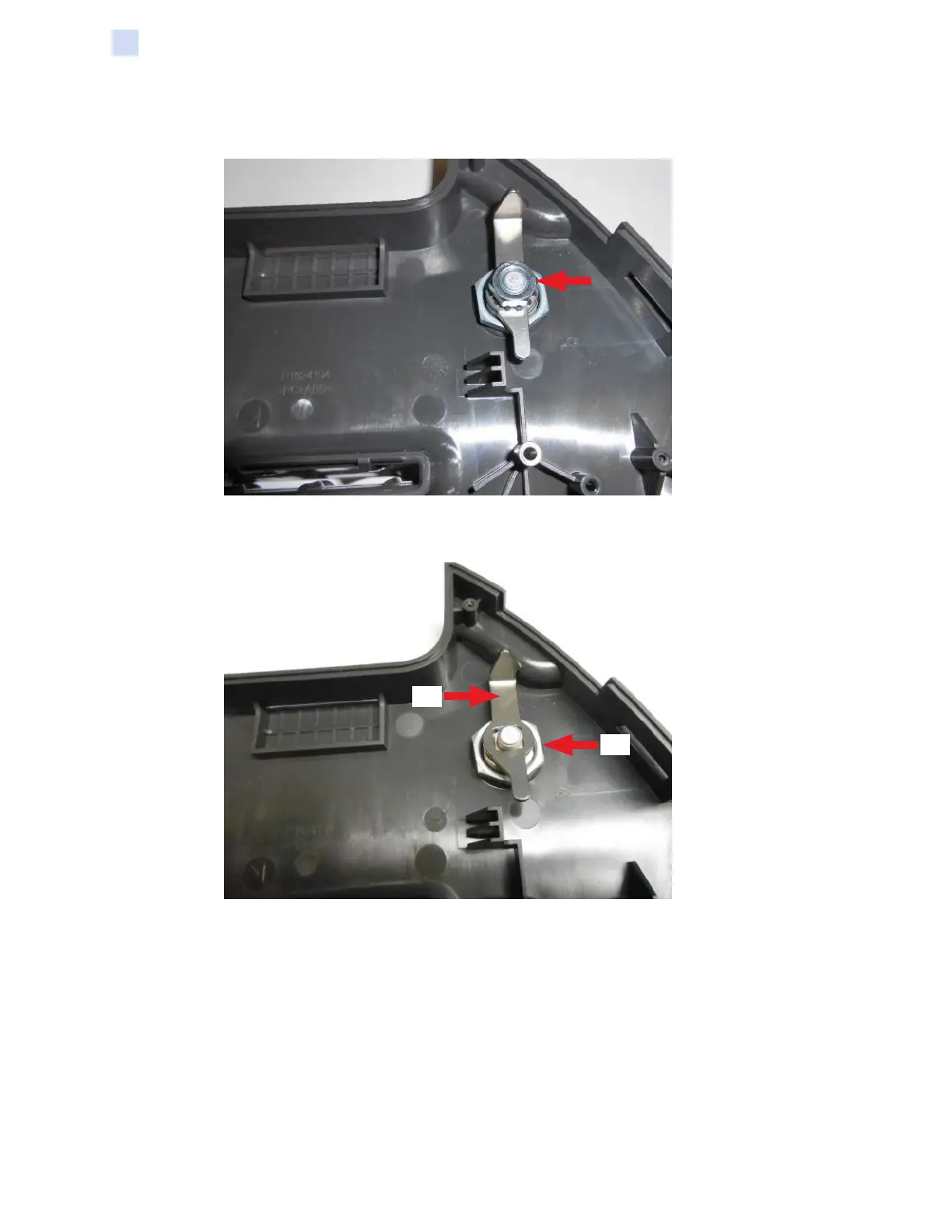

Step 4. With an adjustable wrench, remove the small nut from the Lock Assembly;
arrow below.
Step 5. Remove the Right Lock Pawl; arrow #1 below. Note the orientation of the
Lock Pawl.
#1
#2
Step 6. With an adjustable wrench, remove the large nut; arrow #2 above.
Step 7. Remove the Lock Assembly, and set it aside.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
