Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 53
Replacement Procedures for the Printer
Procedures: Right Cover
Lock Replacement for Right Cover

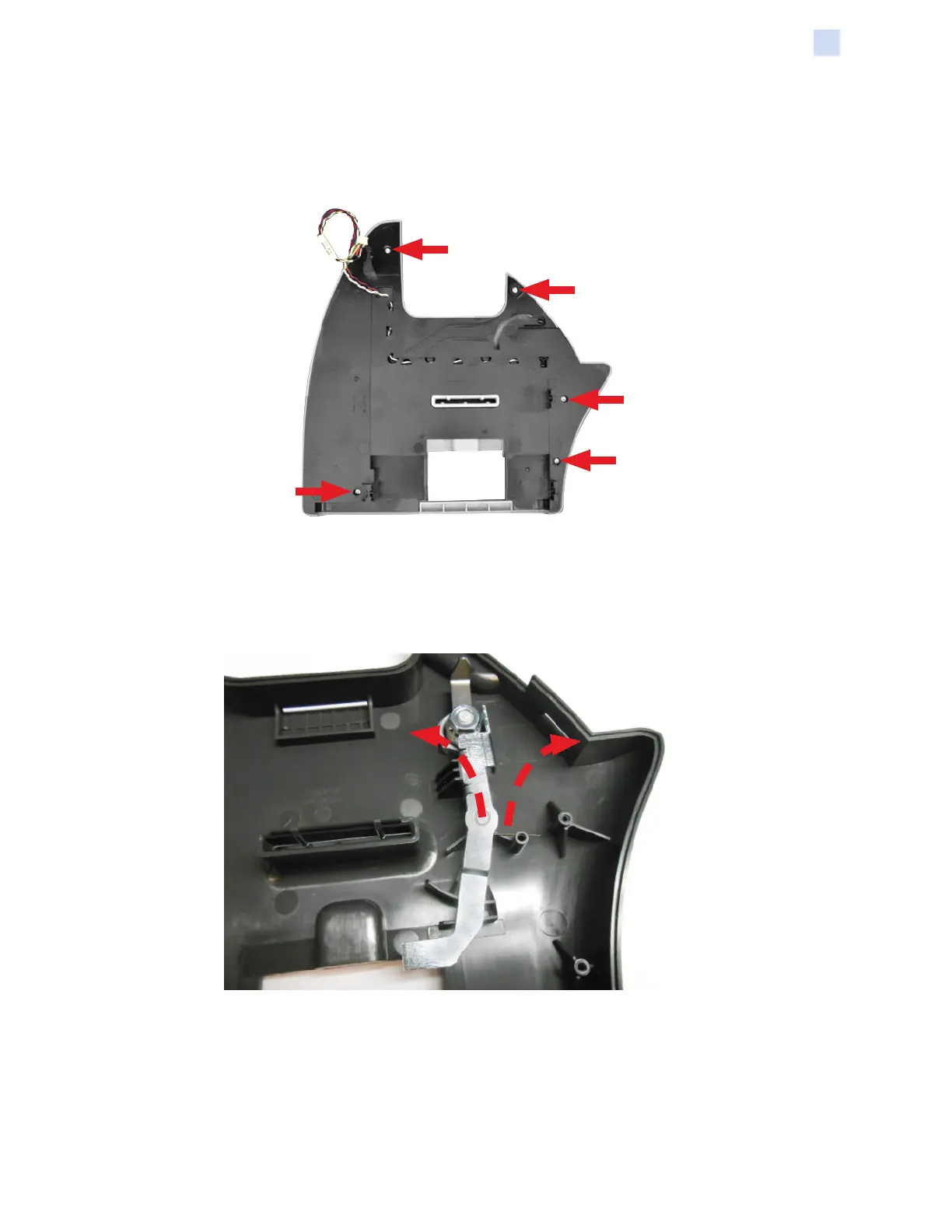

Step 1. With a TORX T10 driver, remove the five screws holding the Inner Cover to
the Right Cover; arrows below.
Step 2. Separate the Inner Cover from the Right Cover, and set the Inner Cover
aside.
Step 3. Remove the Reject Bin Lock Lever and Spring; dashed arrows below. Note
the position of the spring legs.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
