Zebra ZXP 7 series Service Manual

70 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Printer

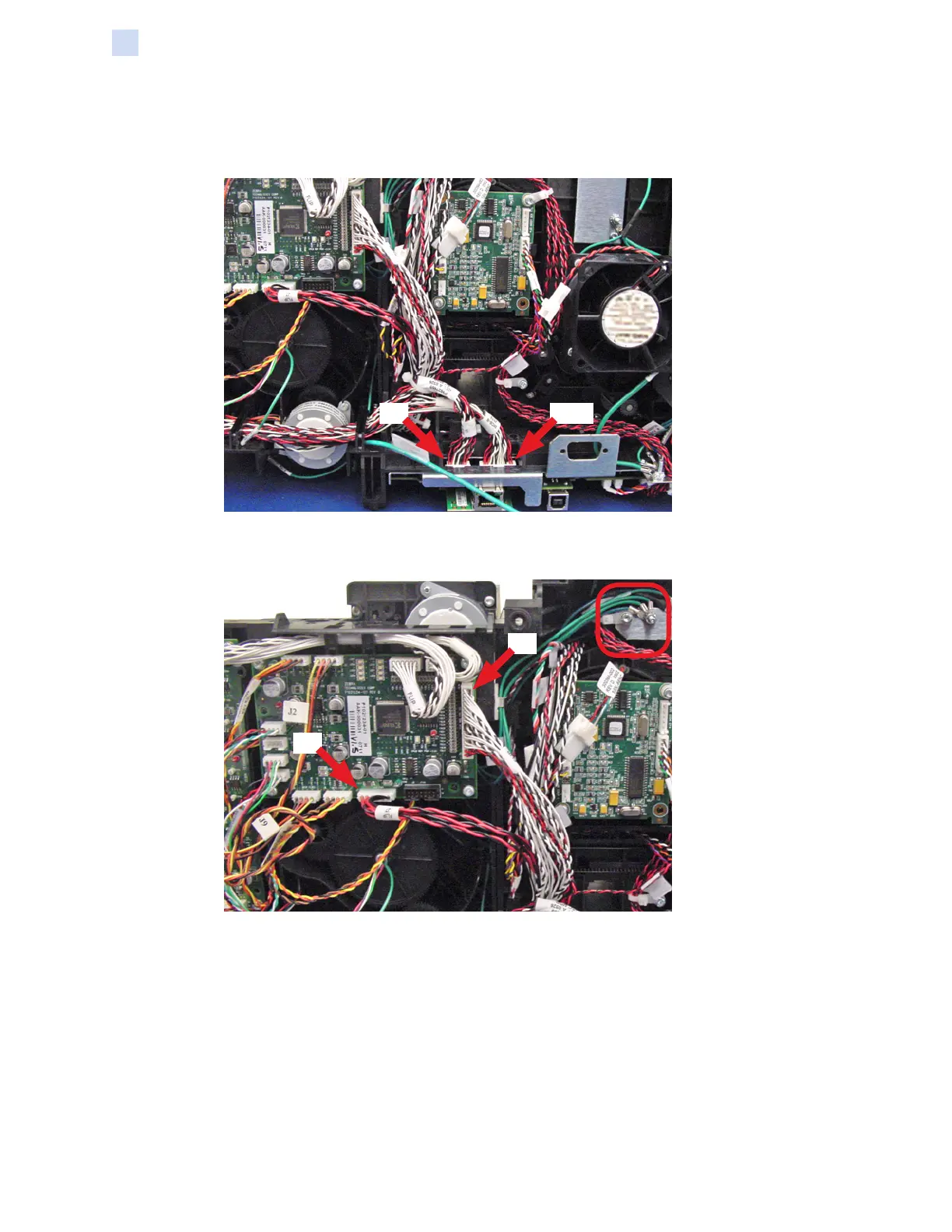

Step 3. For printers with a Mag Encoder and/or Smart Card Encoder: Disconnect
connectors J112 and/or J4 (arrows below). Note that these connectors have
locking tabs; use a small Flat-blade screwdriver to unlock the tabs.
J112J4
Step 4. Disconnect connectors J5 and J7 from the FLIPPER MODULE PCBA (arrows
below).
J5
J7
Step 5. With a 5.5-mm nut driver, remove ground wires from the L-shaped ground
plate (circled above).

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
