Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 71
Replacement Procedures for the Printer
Procedures: Printer

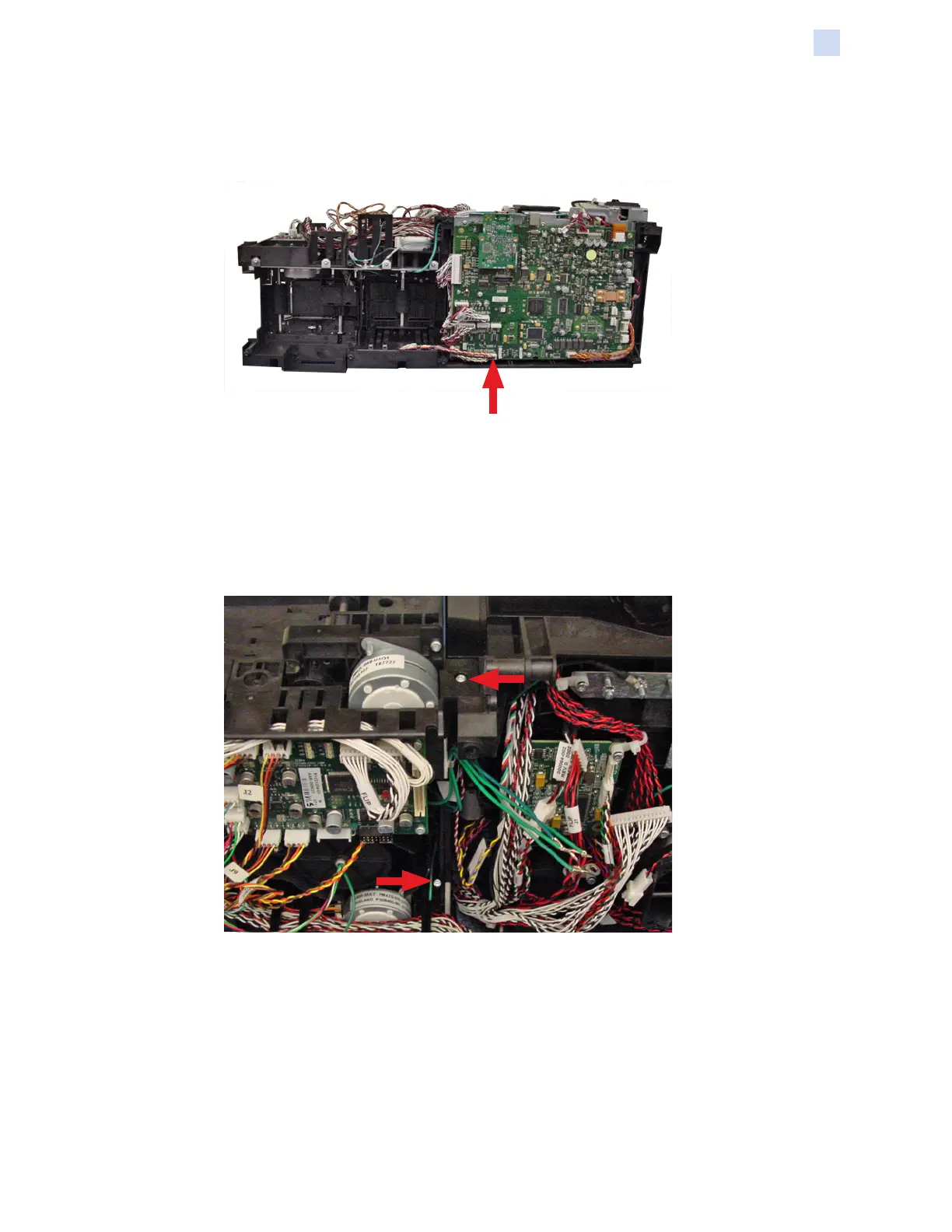

Step 6. Turn the printer on its side so that you can access the Main PCBA.
Step 7. Disconnect connector J21 from the Main PCBA (arrow above).
Step 8. From the top of the Printer: With a long TORX T10 driver, remove the two
screws holding the modules together. Use an 8-inch tapered bit or ball-end
TORX T10 driver for the lower screw.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
