74 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Main PCBA
Removal
Step 1. Disconnect all the connectors to the Main PCBA. Cut cable ties as required.

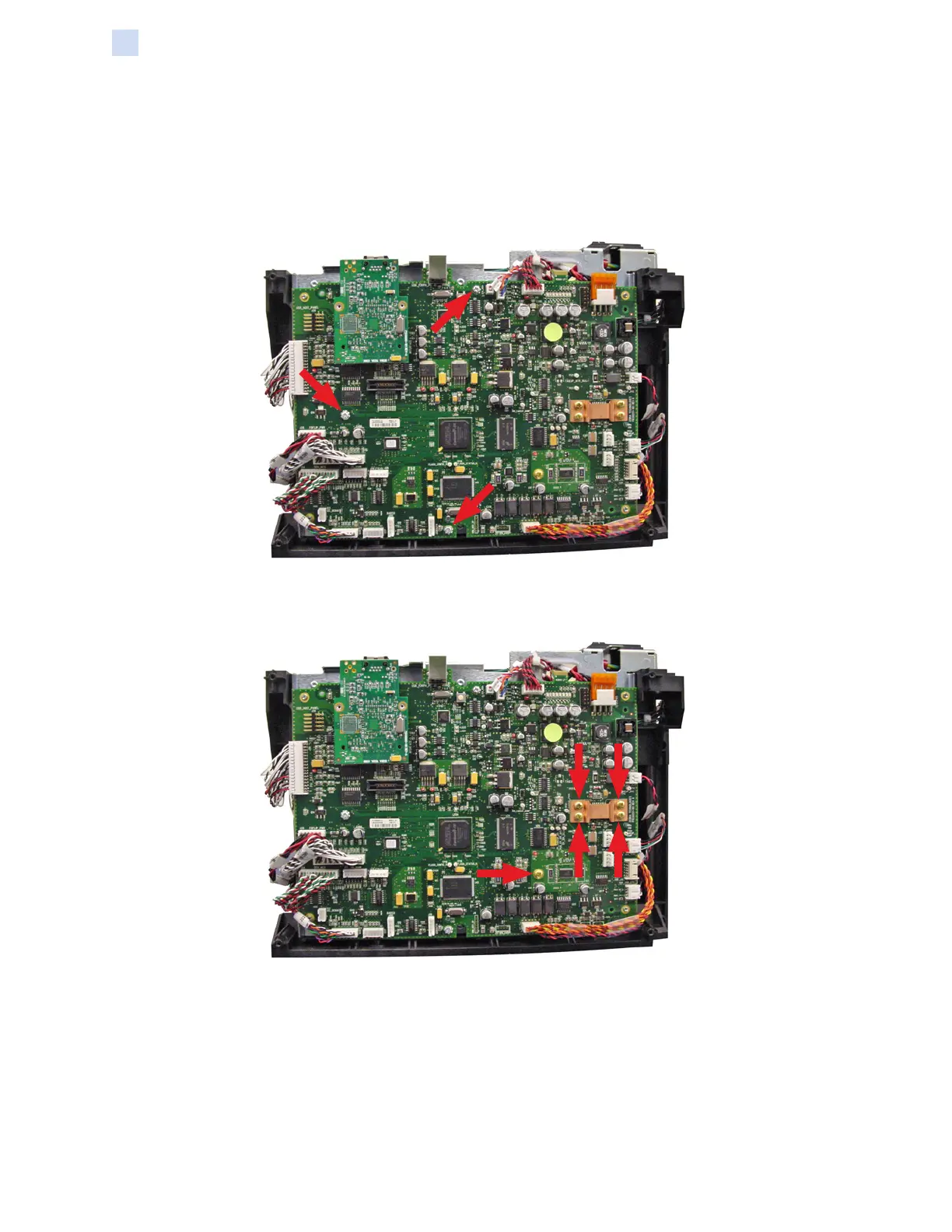

Step 2. With a Phillips #2 screwdriver, remove the three screws holding the Main
PCBA in place.
Step 3. With a Phillips #1 screwdriver, remove the five screws holding the Shield and
Main PCBA in place; and set the Main PCBA and Shield aside.
Step 4. Carefully pull the PCBA o the mounting posts.
