80 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Print Engine
Print Engine Ground Plate

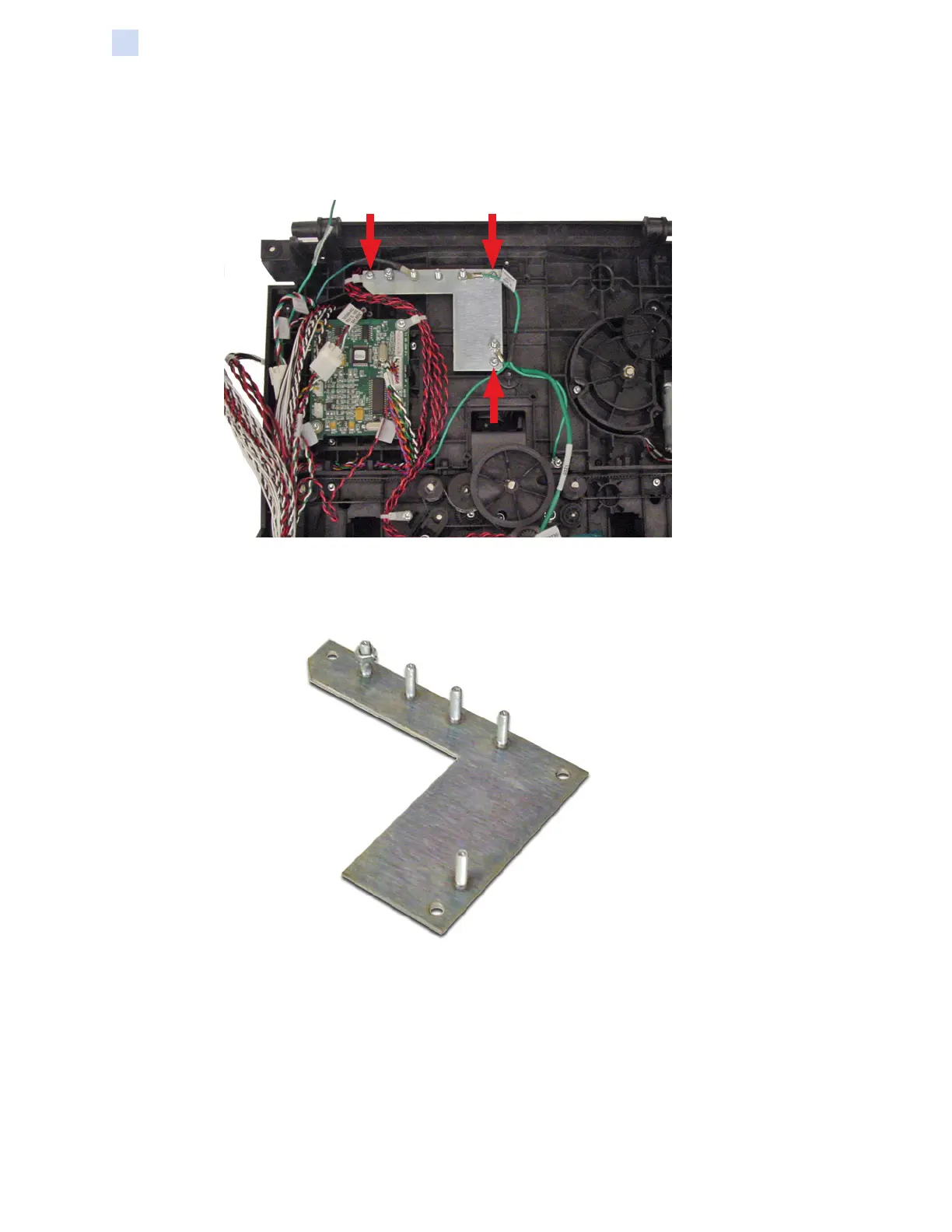

Step 1. With a TORX T10 driver, remove the three screws holding the Print Engine
Ground Plate in place—see arrows below.
Step 2. With a 5.5-mm nut driver, remove all nuts and associated ground wires.
Step 3. Remove the Print Engine Ground Plate, and set it aside.
To Next Page
