P1036102-007 ZXP Series 7 Card Printer Service Manual 81
Replacement Procedures for the Printer
Procedures: Print Engine
Printhead Assembly

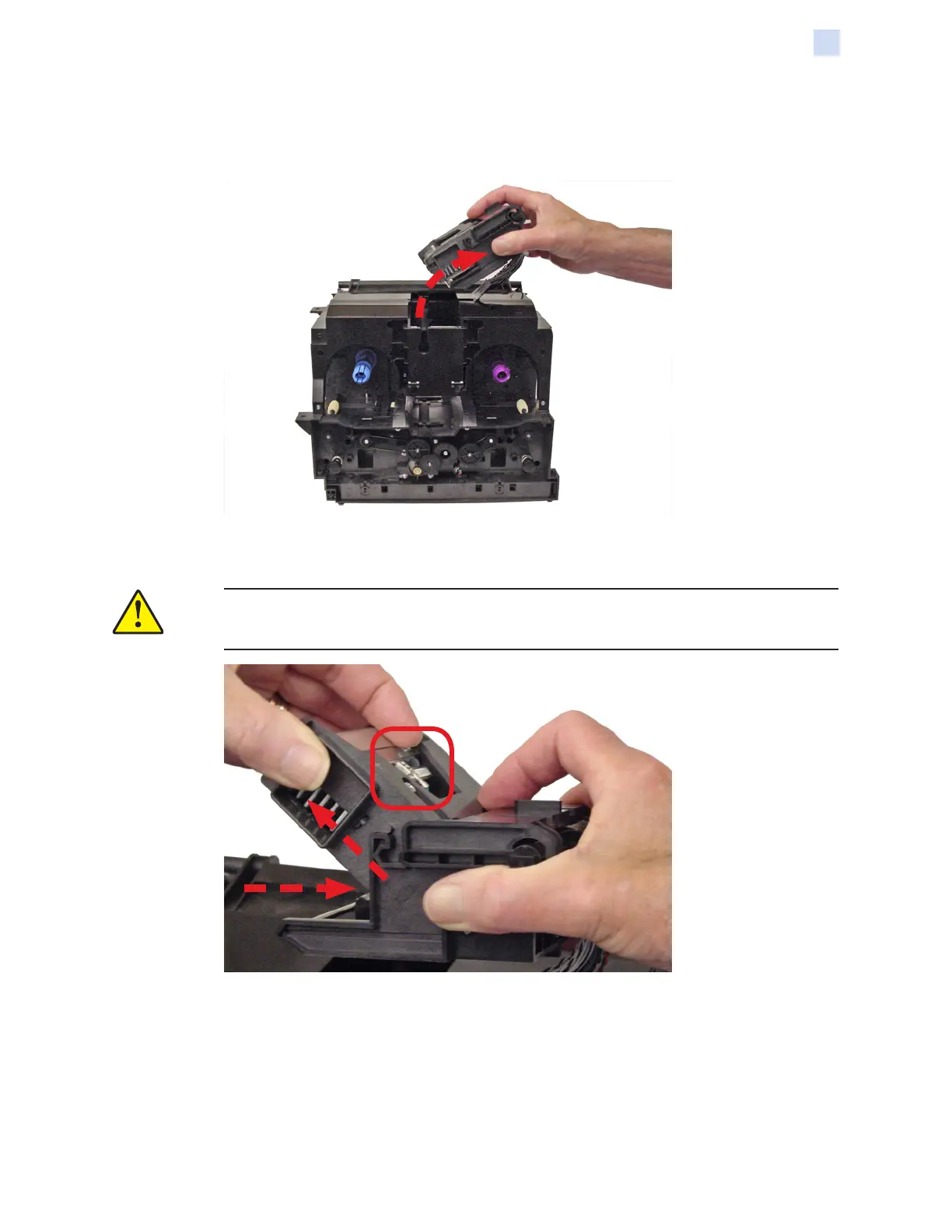

Step 1. Pull the Printhead Assembly and Printhead Housing out of the Print Engine.
Step 2. Push the Printhead Assembly into the Printhead Housing, then pull it up and
out of the Printhead Housing.
Caution • Pulling the Printhead Assembly too far out of the Printhead Housing may
break the wire connected to the ground lug (circled below).
