4.8.3 Home page
After switch on, the microscope is initialized. This
process takes a few seconds. The Home page
(
Fig. 4-23) appears when the instrument is first
started up.
If coded / motorized components are
exchanged or removed while the
instrument is switched off, the
operator may possibly have to
reconfigure the instrument after it has
been switched on again.
You can call all other pages via the buttons on the
navigation button bar (
4-23/1).
The control area (
4-23/2) shows the configuration
identified, as well as its current status. All coded
and motorized control elements detected during
initialization appear in the status field, otherwise,
the character "-"will be displayed. The control
elements are arranged from top to bottom
according to their significance.
The following operation controls are located along
the right edge (
4-23/3):
− Users button:
When this button is pressed, the user selection
page will appear (Fig.
4-24). A preconfigured
user may be chosen on the user selection
page. For the configuration of a user, see
Section
4.8.6.

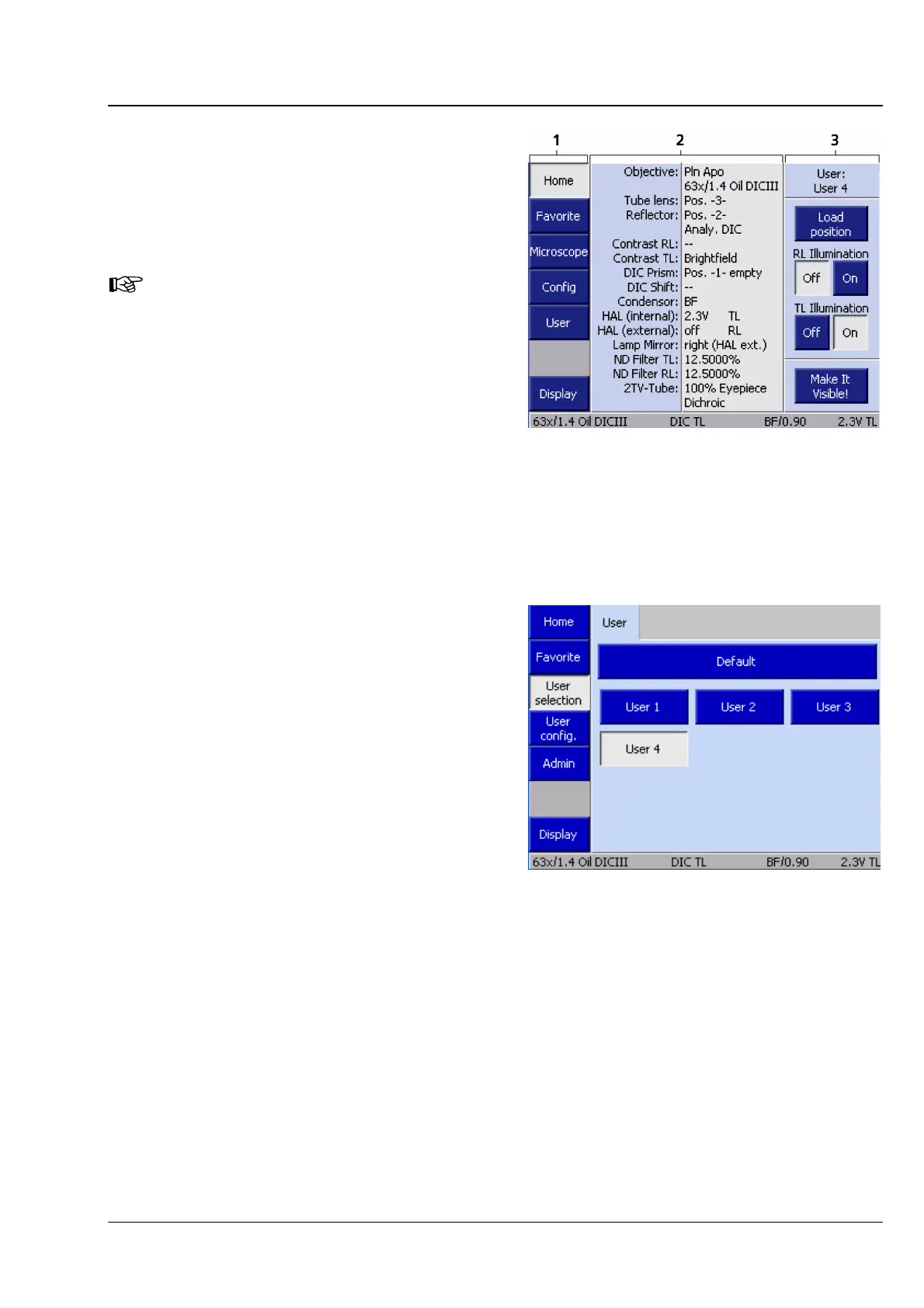

Fig. 4-23 Home page
Fig. 4-24 User selection page
