START-UP
Axio Imager HBO 100 illuminator Carl Zeiss
M70-2-0020 e 06/2009 430000-7344-001 63
3.31 HBO 100 illuminator
3.31.1 Inserting the HBO 103 W/2 mercury
vapor short-arc lamp
For safety reasons, the HBO 100 illuminator and
the HBO 103 W/2 mercury vapor short-arc lamp
are supplied separately packed.
Therefore, inserting the HBO 103 W/2 lamp into
the lamp housing is the first step to start up this
illuminator.
For a description of how to insert or replace the
HBO 103 W/2 lamp, read the instructions for use
supplied with it.
CAUTION
To reduce the transmission, use an
FL attenuator, discrete (423616-0000-
000 or 423617-0000-000). The gray
filters mounted in the 2-position filter
wheels (428300-0000-000 or 428301-
0000-000) are not permanently stable.
3.31.2 Attaching the HBO 100 illuminator
• Remove the cover from the reflected-light
socket (
3-44/3).
• Insert the dovetail of the lamp housing (3-44/1)
into the reflected-light tube (
3-44/3) on the
back of the instrument and tighten the
clamping screw (
3-44/2) by means of a SW 3
ball-headed screwdriver.
• Insert the multi-pin plug of the HBO 100
illuminator into the device connector (
3-45/1)
on the HBO 100 transformer and secure it by
means of a coupling ring.
• First, connect the power cable to the power
socket (
3-45/2) on the HBO 100 transformer,
and then connect it to a power outlet.

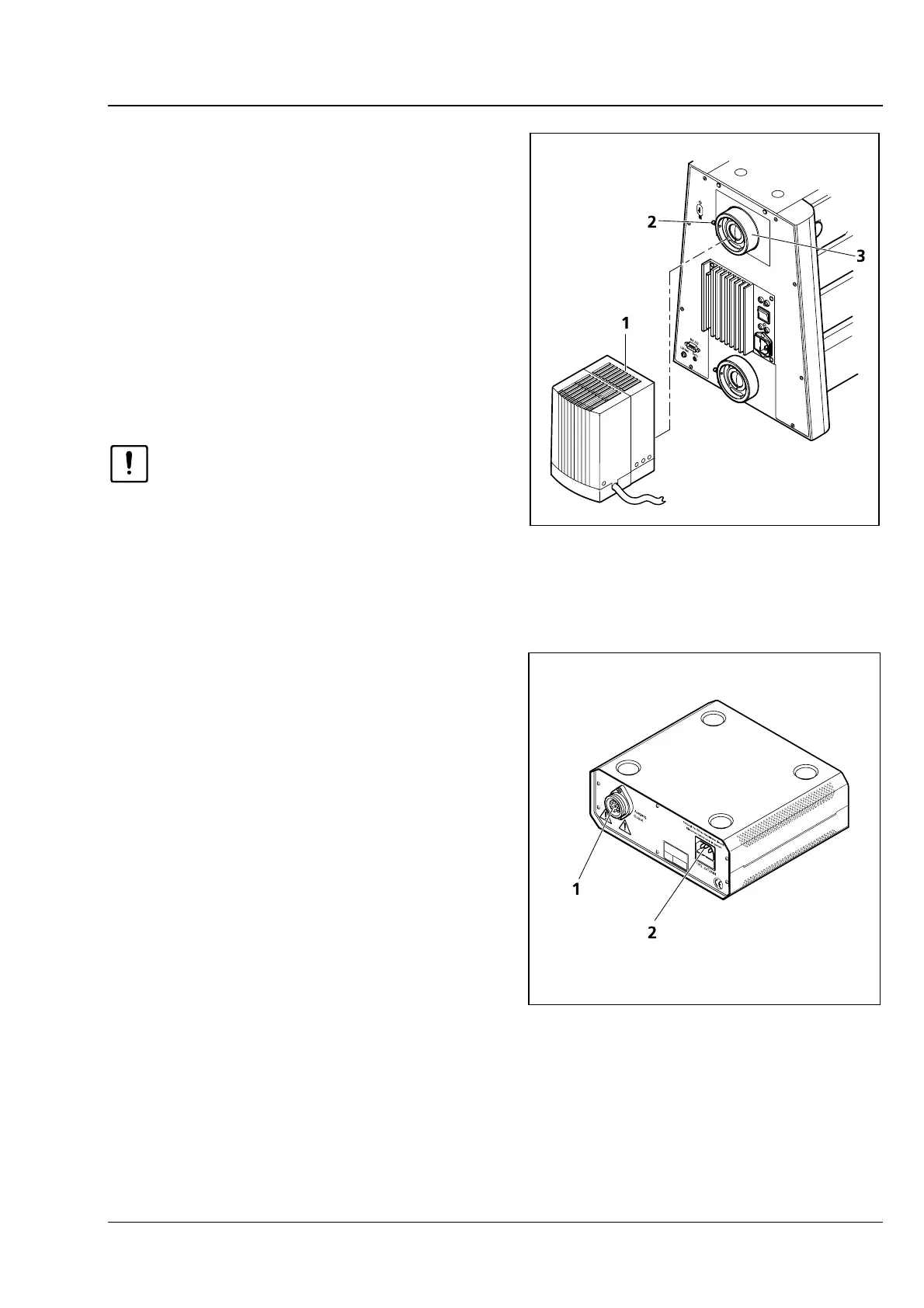

Fig. 3-44 Attaching the HBO 100 illuminator
Fig. 3-45 HBO 100 transformer
