OPERATION

Carl Zeiss Coded Axio Imager operation and function controls Axio Imager

74 430000-7344-001 M70-2-0020 e 06/2009

4 OPERATION

4.1 Coded Axio Imager operation and function controls

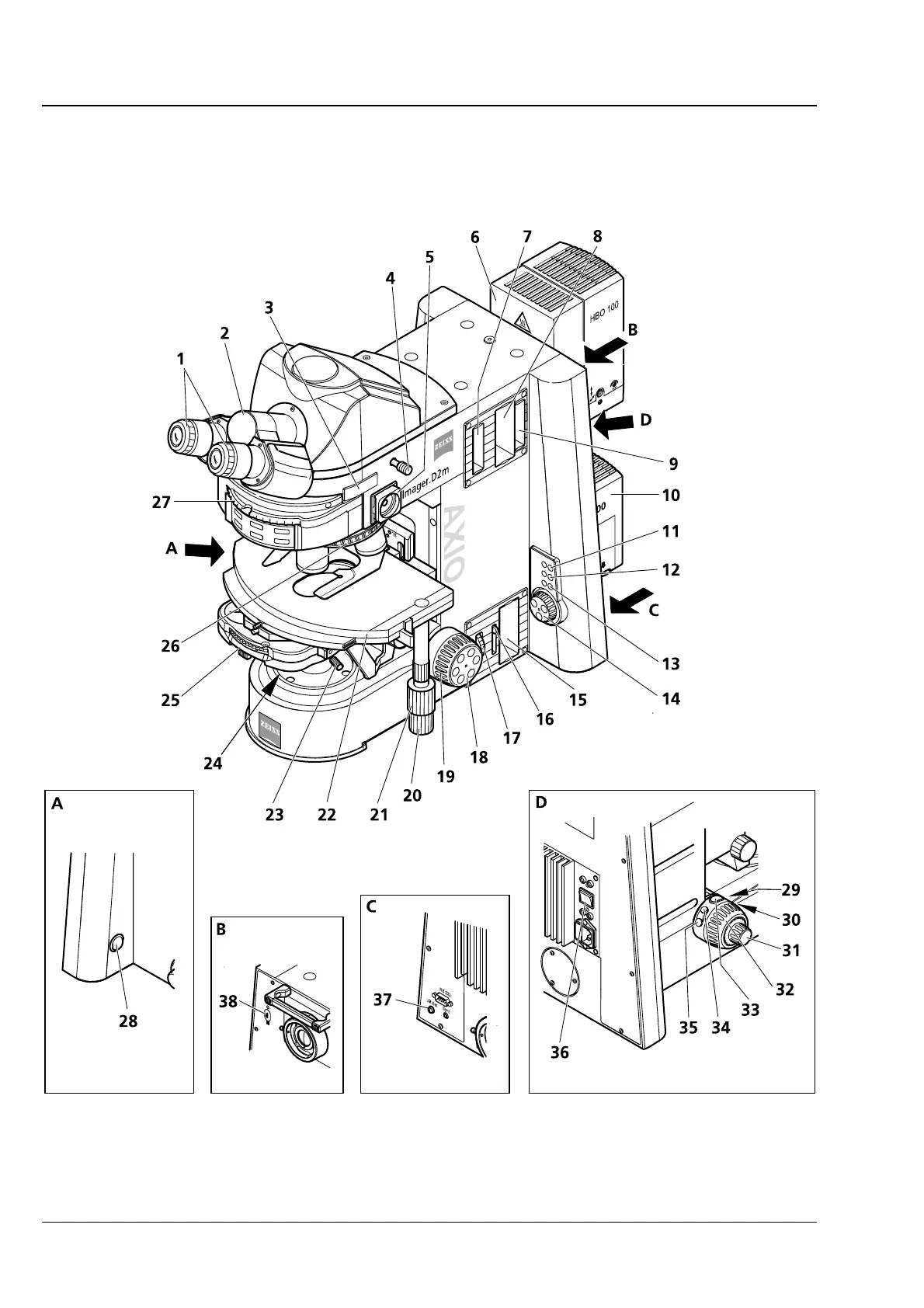

Fig. 4-1 Axio Imager operation and function controls (manual version)
