4.9.9 Setting reflected-light DIC and reflected-light C-DIC
(1) Application
The reflected-light DIC and reflected-light C-DIC technique (DIC = Differential Interference Contrast,
C-DIC = Differential Interference Contrast in Circularly polarized light) serves for producing high-contrast
images of phase specimens, i.e. those specimens which only change the phase of the light in contrast to
amplitude specimens.
(2) Instrument equipment
− Axio Imager MAT with connected and adjusted HAL 100 halogen illuminator.
− Rotary mechanical stage 75x50/240°
− EC Epiplan-Neofluar, Epiplan objectives additionally labeled with "DIC" or "Pol".
− DIC slider, that specially fits the objective that is engraved with magnification and aperture on the top
of the slider or 6x20 C-DIC slider (in connection with the reflector module C DIC P&C), 6x20
compensator mount or 4-position modulator turret).
(3) Reflected-light DIC, preferably for Epiplan 5x - 100x and LD-Epiplan 10x - 100x objectives
• Prepare the microscope as described in Section 4.9.7 for reflected-light brightfield. The luminous-field
diaphragm should just disappear from the field of view to avoid reflections.
• Rotate the reflector turret to move the C DIC P&C reflector module into the light path.
• Rotate the nosepiece to swing in the objective position with DIC slider slot.
• Push the DIC slider into the slot on the nosepiece (above the objective).
• Place the specimen on the stage, focus on it and rotate the mechanical stage until the specimen
structure of interest appears at maximum contrast.
• To optimize the contrast, you can turn the knurled screw on the DIC slider.
(4) Reflected-light C-DIC
• Prepare the microscope for reflected-light
brightfield.
• On the nosepiece, swivel in the objective
suitable for DIC.
• Switch the C DIC P&C reflector module into the
light path.
• Push the C-DIC slider 6x20 (4-129/3) into the
6x20 compensator mount (
4-129/4) or rotate
the 4-position modulator turret (
4-130/6) at
turret wheel (
4-130/5) to swing in the desired
C-DIC position (C1 or C2).
C1 for 5x … 20x objectives;
C2 for 50x … 100x objectives.
When using objectives of 50x or
higher, it is advisable to use the
reflected-light diffusion disk.

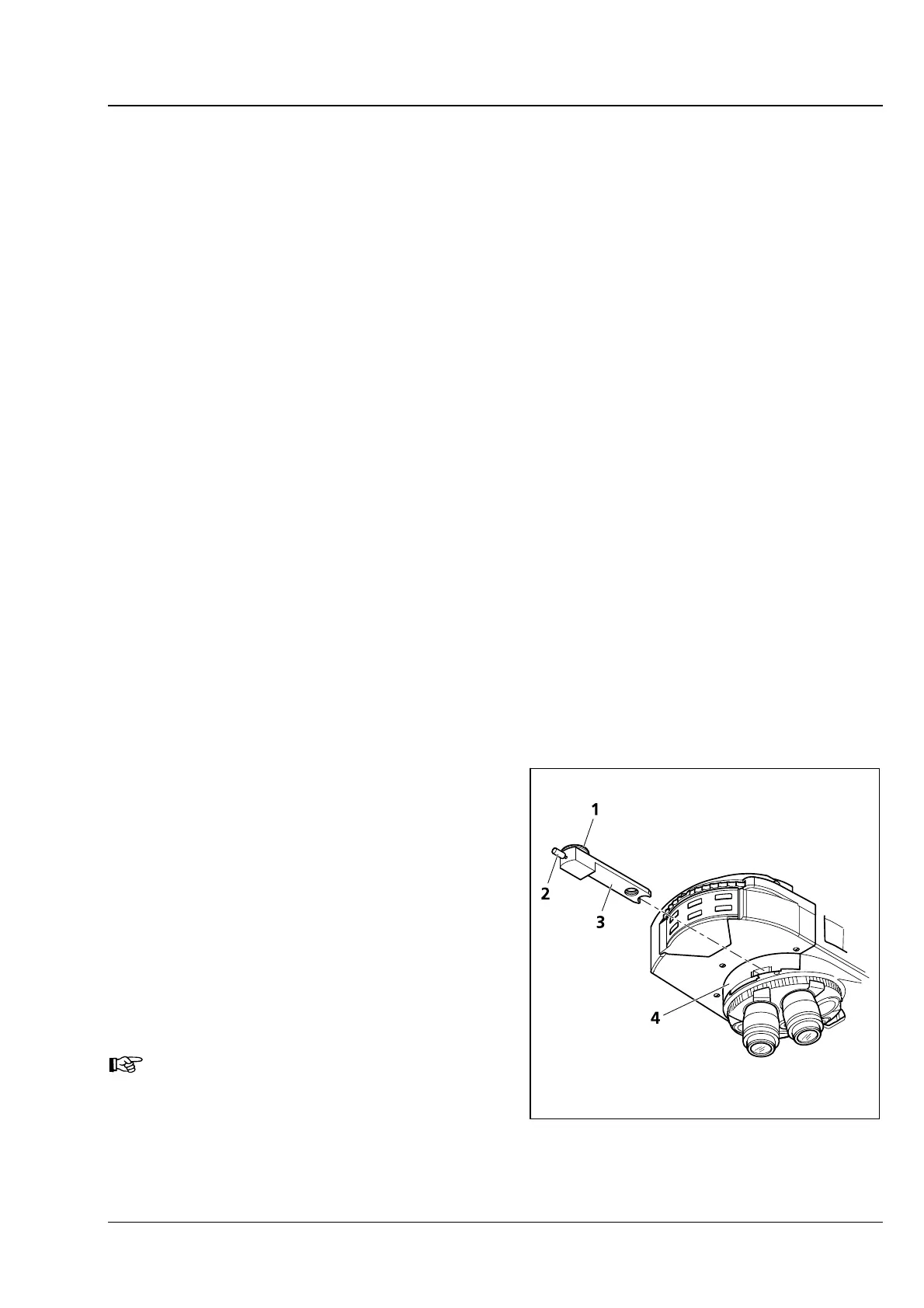

Fig. 4-129 6x20 compensator mount with
6x20 C-DIC slider
