OPERATION
Carl Zeiss Switching microscope and HAL 100 illuminator on/off Axio Imager
86 430000-7344-001 M70-2-0020 e 06/2009
Button for quick-action stage lifting to OPERATING POSITION (
4-5/15 or 21)
− On activation of this button, the stage will be moved into the focus position saved last.
You can abort the automatic travel of the stage to the load position/operating position by
pressing the button again or by pressing the STOP button on the TFT display.
4.3 Switching microscope and HAL 100
illuminator on/off
4.3.1.1 Switching on
• Remove the dust covers from instrument.
• Switch on the manual version of the microscope
at the on/off (
4-9/1) switch located at the left
side of the stand. With the motorized
microscope, first switch on the power supply
VP232-2 at its on/off switch (
4-10/1), and then
operate the on/off switch on the stand
(Position I).
• Adjust the desired light intensity using the light
intensity control.
• If you installed one HAL 100 halogen
illuminator each for reflected and for
transmitted light, use toggle switch (
4-1/36) to
switch to the desired illuminator (reflected light:
toggle switch up; transmitted light: toggle
switch down).
The functioning of the light manager
depends on the setting of the toggle
switch.
4.3.1.2 Switching off
• After use, switch the manual and the motorized
microscope off by means of the on/off switch
(
4-9/1) on the left side of the stand. Then, on
the motorized version, switch off the power
supply VP232-2 at the on/off switch (
4-10/1)
(Position O).
• Cover the instrument with the dust covers.

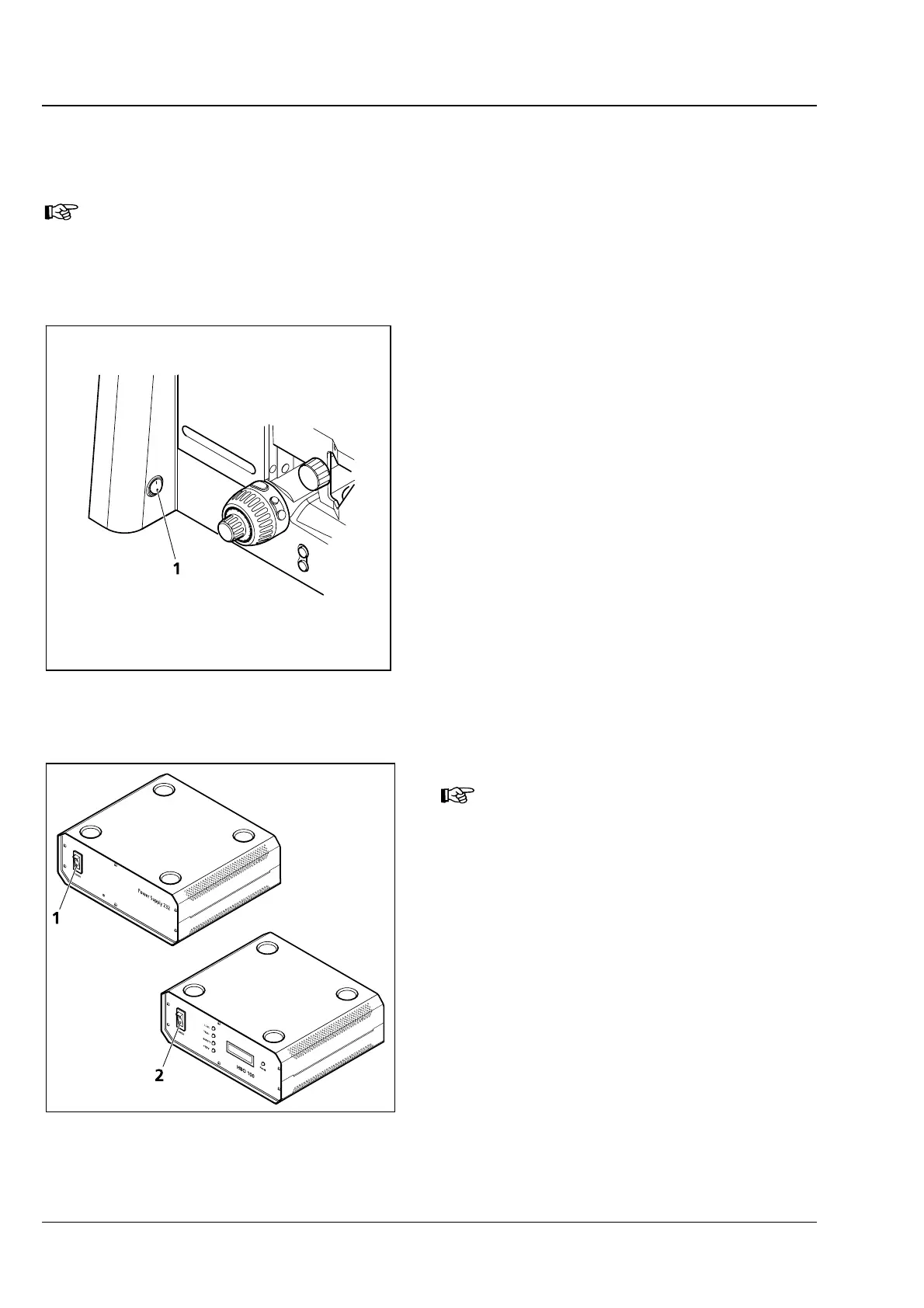

Fig. 4-9 Switching the manual microscope
on/off
Fig. 4-10 Switching motorized microscope
and HBO 100 illuminator on/off
