START-UP
Carl Zeiss Setting the interpupillary distance on the binocular tube Axio Imager
36 430000-7344-001 M70-2-0020 e 06/2009
3.5 Setting the interpupillary distance
on the binocular tube
• To adjust the eyepiece distance to your
individual interpupillary distance, swing the
eyepiece tubes symmetrically toward or away
from one another (Fig.
3-6).
The adjustment of the interpupillary distance is
correct when you see only one round image while
looking through the two eyepieces!
3.6 Setting the viewing height
• The viewing height can be adjusted to
individual requirements by swiveling the
eyepiece tubes up (
3-7/A) or down (3-7/B).
The ergonomic binocular tubes (425511-0000-
000, 425512-0000-000 und 425515-0000-000)
provide continuous height adjustment over a range
of 50 mm. Adjustment is by means of the rotating
knob.

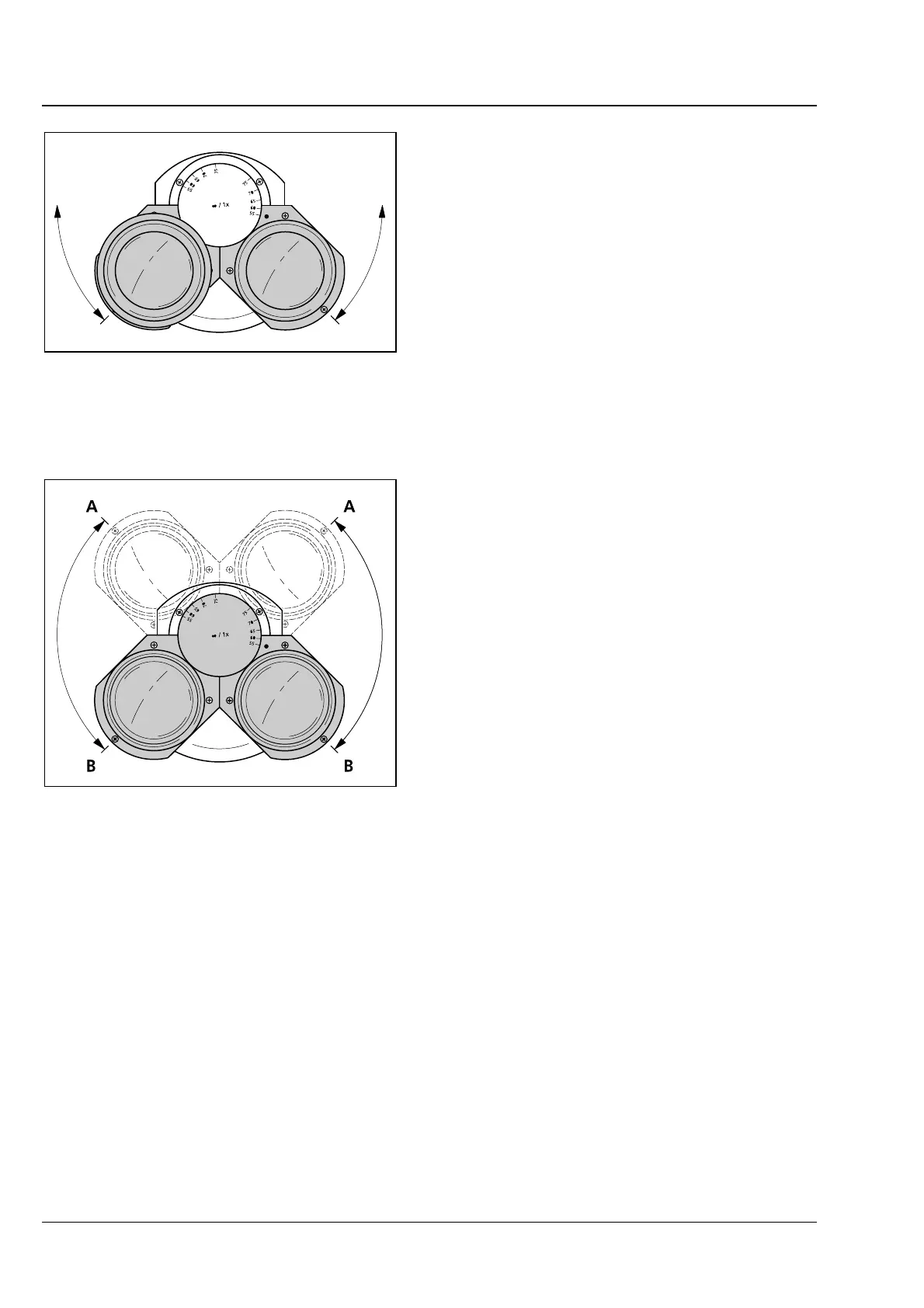

Fig. 3-6 Setting the interpupillary distance
on the binocular tube
Fig. 3-7 Setting the viewing height on the
binocular tube
