INTRODUCTION

Axio Imager Overall view of Axio Imager - manual

Carl Zeiss

M70-2-0020 e 06/2009 430000-7344-001 13

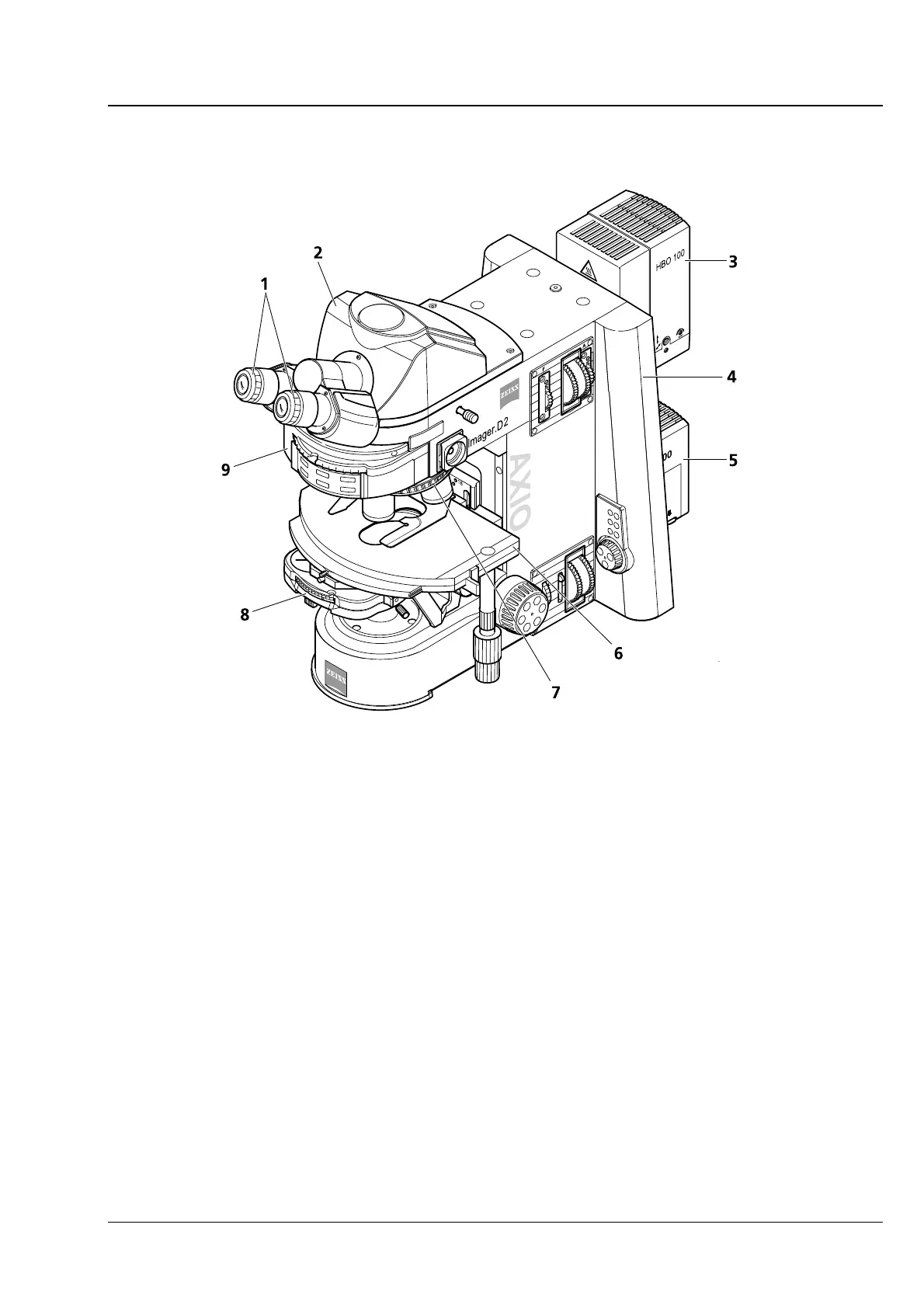

1.4 Overall view of Axio Imager - manual

1 Eyepieces

2 Binocular tube

3 Reflected-light illuminator (HBO 100)

4 Microscope stand, manual

5 Transmitted-light illuminator (HAL 100)

6 Mechanical stage

7 Nosepiece

8 Condenser

9 Reflector turret
