INTRODUCTION

Carl Zeiss Overall view of Axio Imager - motorized Axio Imager

14 430000-7344-001 M70-2-0020 e 06/2009

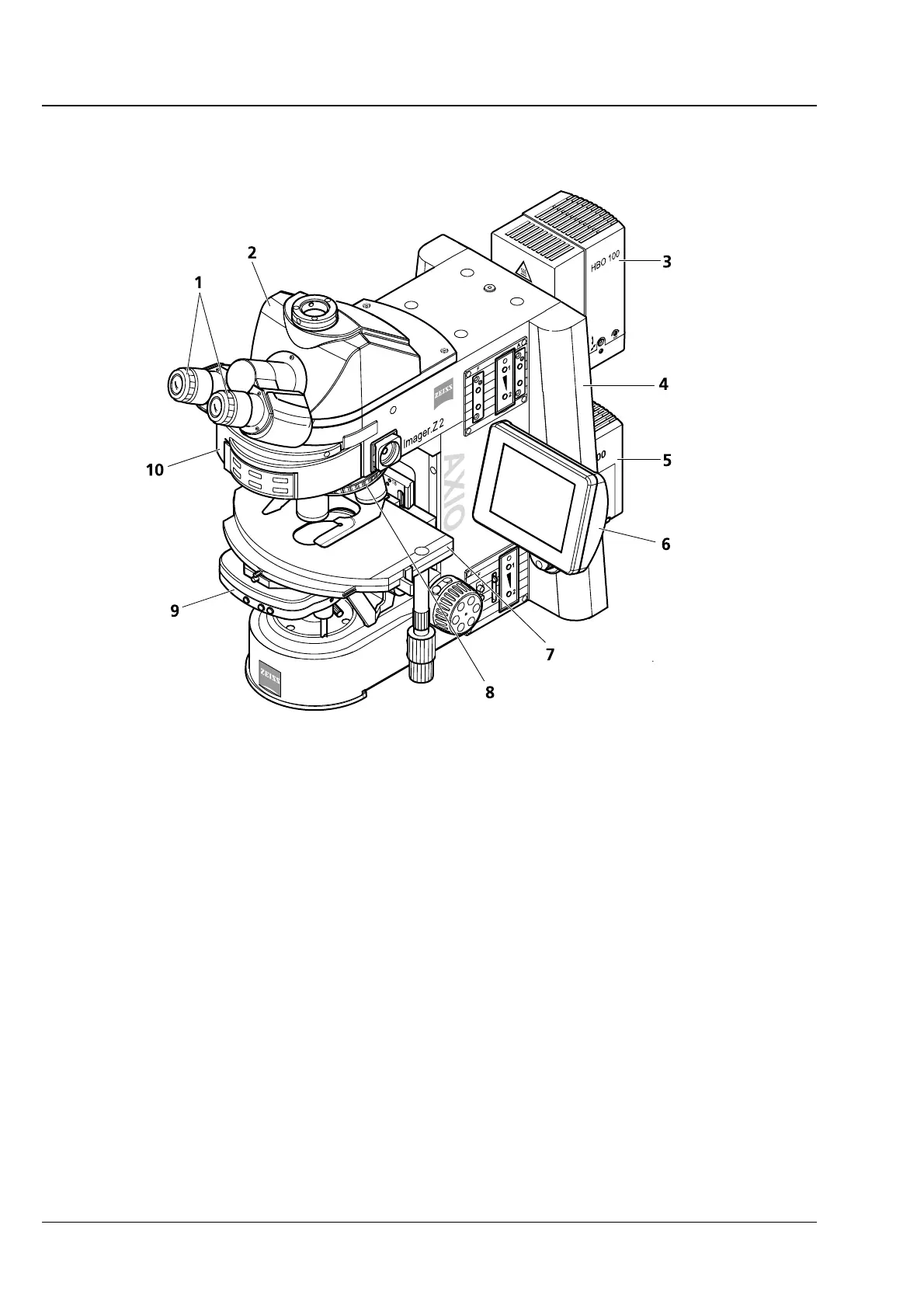

1.5 Overall view of Axio Imager - motorized

1 Eyepieces

2 Binocular phototube

3 Reflected-light illuminator (HBO 100)

4 Microscope stand, motorized

5 Transmitted-light illuminator (HAL 100)

6 TFT display

7 Mechanical stage

8 Nosepiece

9 Condenser

10 Reflector turret
