3.32 Electrical connections on the rear
side of the microscope
3.32.1 Manual stand
Legend to Fig. 3-49:
1 Connectors for reflected-light halogen illuminator
2 Toggle switch reflected/transmitted light (HAL)
3 Connectors for transmitted-light halogen illuminator
4 Power connector
5 Sync connector for camera synchronization
6 LM set button for light manager function
7 RS 232 port
3.32.2 Motorized stand
Legend to Fig. 3-50:
1 CAN connector
2 USB connector
3 Ethernet connector
4 RS232 connector
5 CAN connector
6 CAN connector
7 Connector for linear sensor for focus adjustment
8 Connectors for reflected-light halogen illuminator (RL)
9 Connectors for transmitted-light halogen illuminator
10 Connector for power supply VP232-2
11 RS232 connector (intended for later applications)
12 Sync connector for camera synchronization
13 LM set button for light manager function

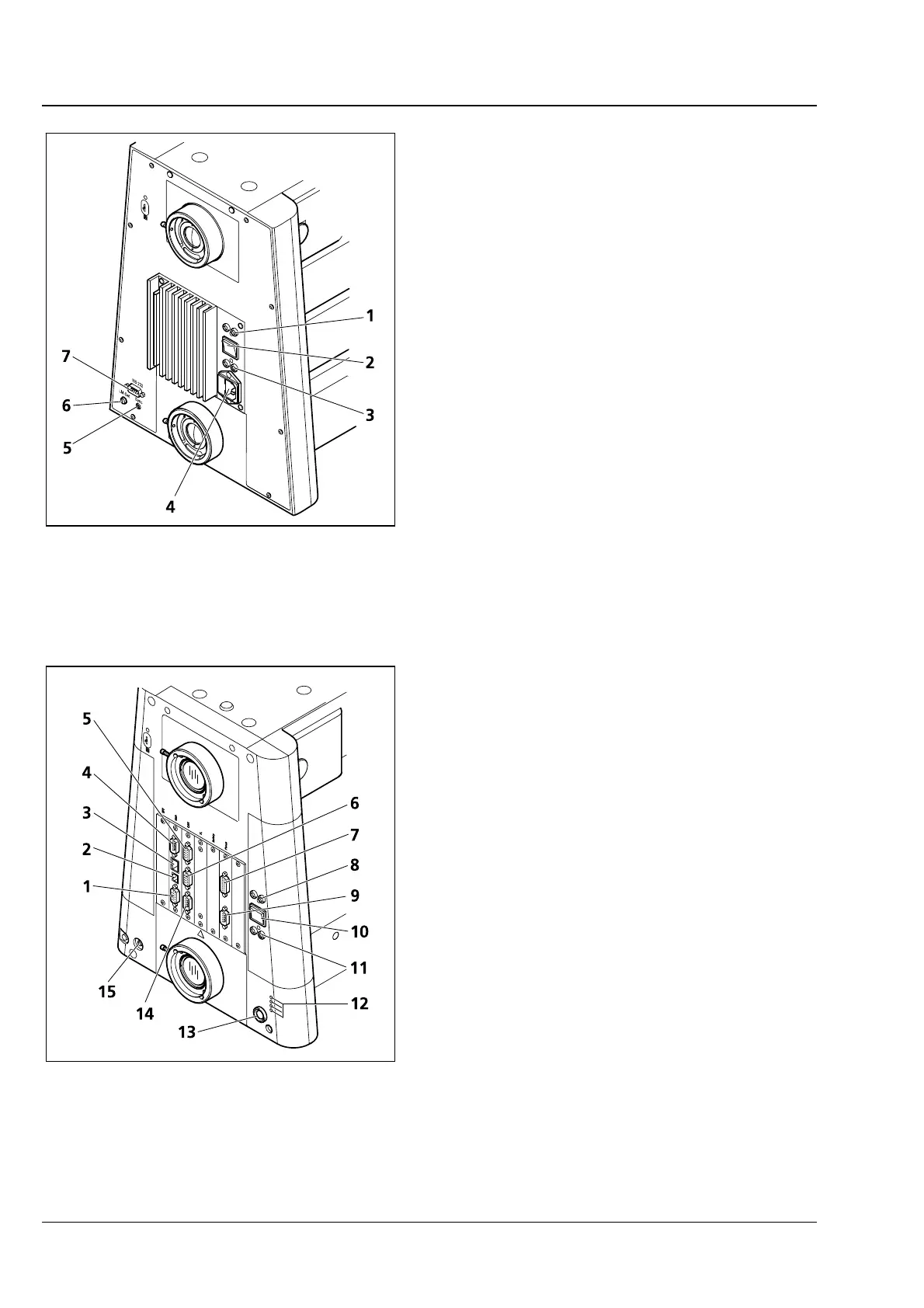

Fig. 3-49 Axio Imager, manual (rear side)
Fig. 3-50 Axio Imager, motorized (rear side)
