3.16 Attaching the condenser carrier to
the transmitted-light/reflected-
light stage carrier
• Use the drive knob (
3-18/2) to adjust the guide
of the condenser carrier (
3-18/3) in such a way
that the two screws (
3-18/4) are accessible.
• Attach the condenser carrier to the stage carrier
(
3-18/1). Push it to the upper stop in a firm and
straight manner, and tighten the two screws.
3.17 Changing the fine-drive knob or
the fine-drive disk on the stand
The fine-focusing drive to the right and left on the
stand can be provided either with a fine-drive knob
or a fine-drive disk.
To change the fine-drive knob or the fine-drive
disk, proceed as follows:
• Turn the coarse-drive knob on the relevant side
of the stand in such a way that the mounting
hole (
3-19/2) points upward.
• Insert the ball-headed screwdriver SW 1.5
(
3-19/1) into the mounting hole and loosen the
locking screw of the fine-drive knob or the fine-
drive disk.
• Pull the fine-drive knob or the fine-drive disk
sideways off the shaft.
• Slide the fine-drive disk or the fine-drive knob
onto the shaft, so that the recess (
3-19/3 or 4)
is located under the mounting hole.
• Tighten the locking screw.

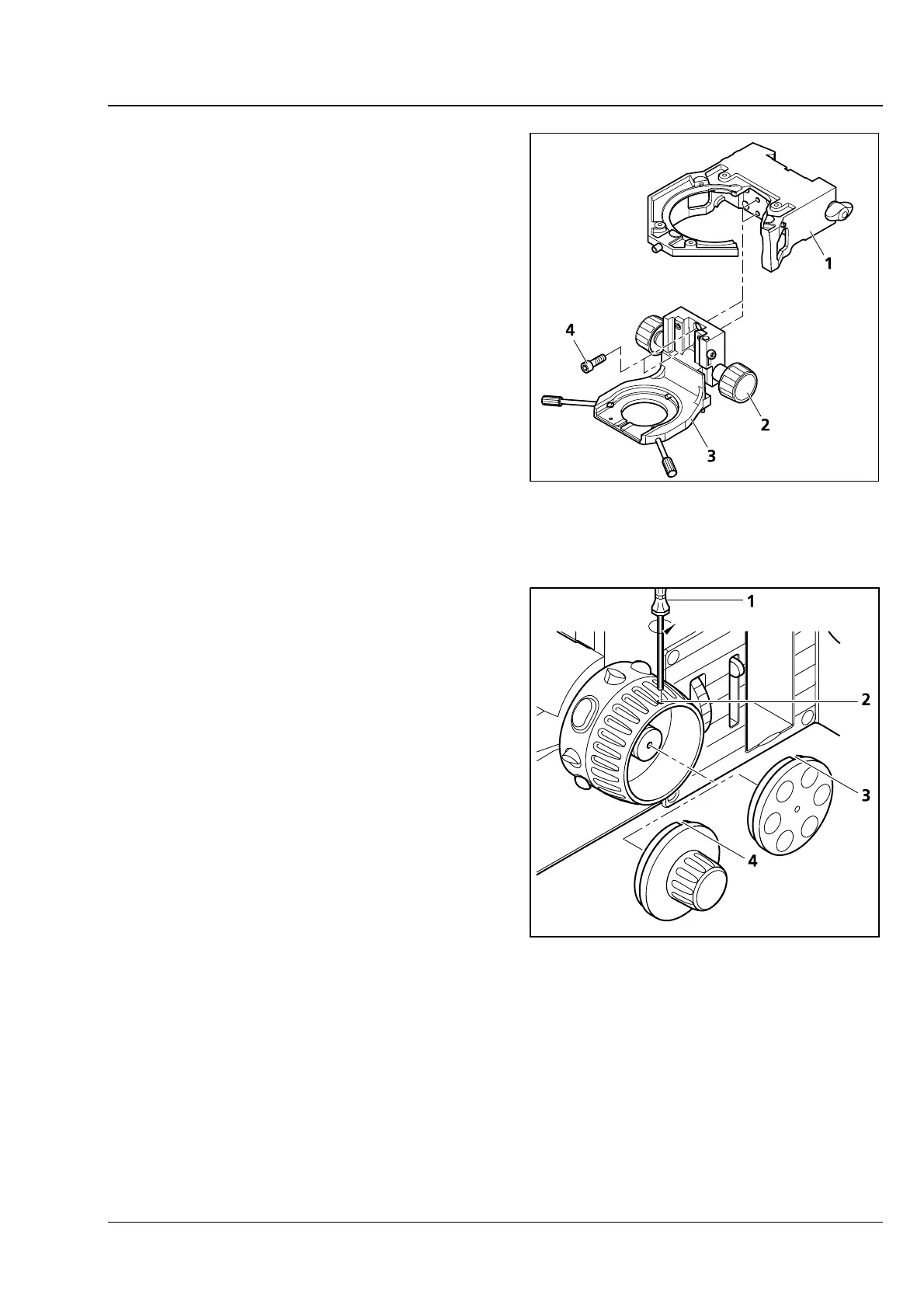

Fig. 3-18 Attaching the condenser carrier to
the stage carrier
Fig. 3-19 Changing the fine-drive knob or
fine-drive disk
