OPERATION
Carl Zeiss Operating the motorized microscope via the touchscreen of the TFT display Axio Imager
112 430000-7344-001 M70-2-0020 e 06/2009
Eyepiece
Bino-
Shutter
Top Port
− Tube with Bino Shutter (eyepiece shutter) installed.
− Mirror for deflection to eyepieces is unknown.
− Light path for Top Port is unknown.
− No motorized camera path deflection at Side Port installed.

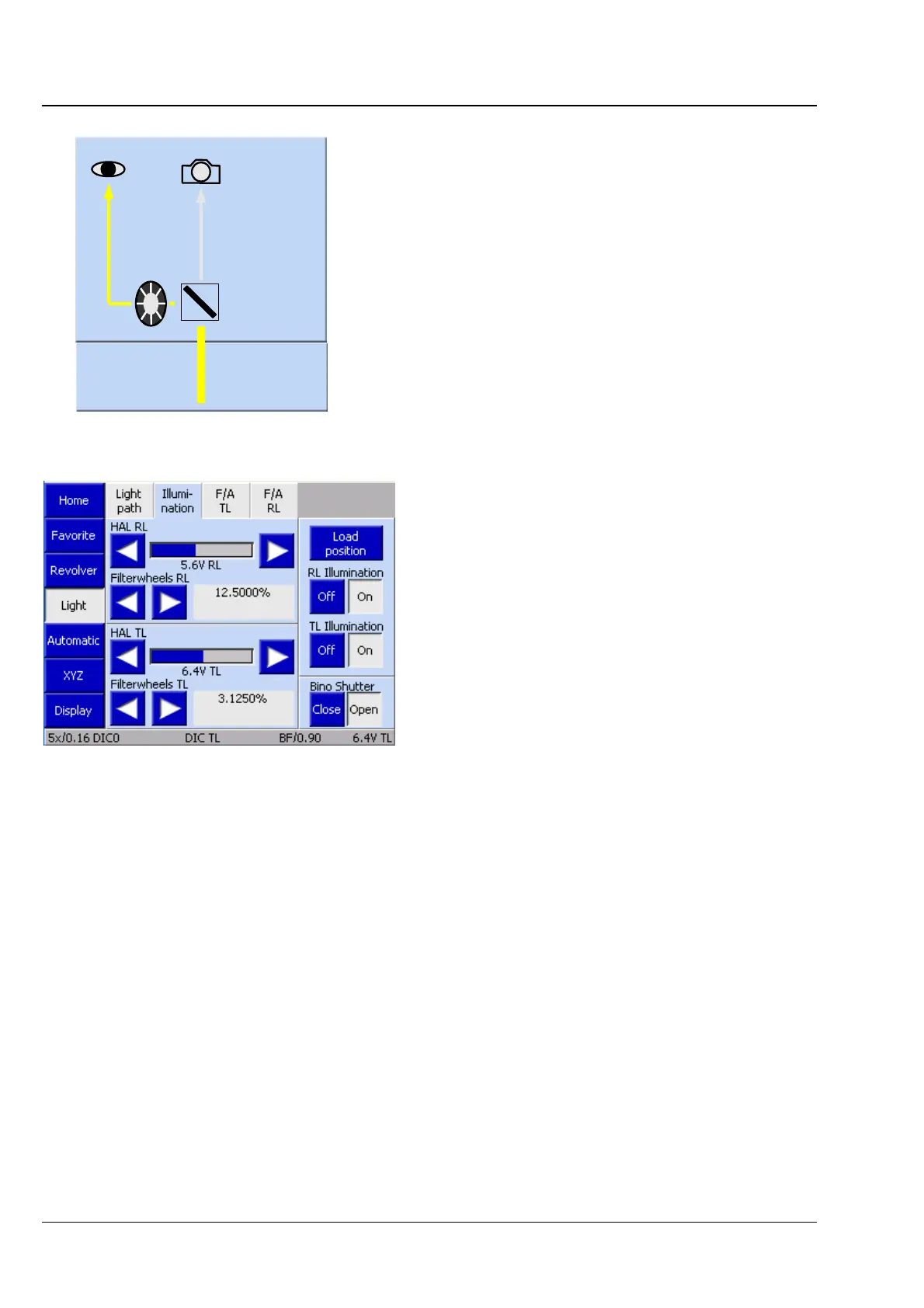

(2) Brightness tab
This is where the lamp voltage in transmitted and
reflected light and the filter wheels can be
checked. These functions are available only if
motorized filter wheels / attenuators are used.
When the internal power supply is configured both
in reflected light and transmitted light, only a bar is
displayed, which changes accordingly.
Fig. 4-44 Microscope -> Light -> Brightness
