Carl Zeiss Stage micrometers and eyepiece reticles Axio Imager
28 430000-7344-001 M70-2-0020 e 06/2009

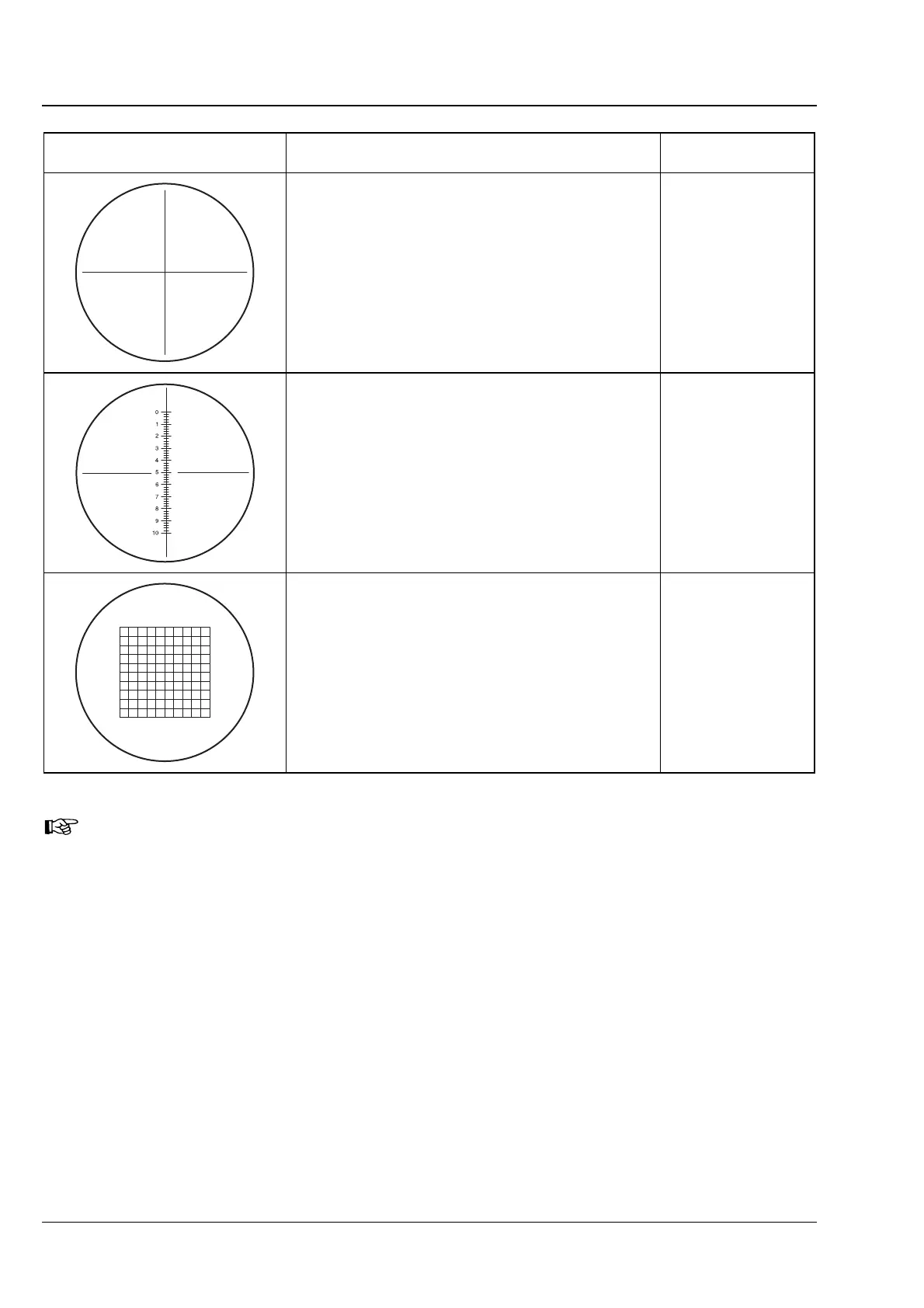

Illustration Designation, technical data Cat. No.
Eyepiece reticle /d = 26 mm
For the alignment of the reticle by means of
alignment specimen.
474064-0000-000
Crossline micrometer 10:100/d = 26 mm
Graduation length = 10 mm
Increments = 0.1mm
Graduation tolerance ≤ 0.001 mm
474066-9901-000
Net micrometer 12.5x12.5/5;10/d = 26 mm
Area 12.5x12.5 mm, divided into 10x10 fields
474068-0000-000
If an eyepiece reticle is used, the binocular tube or the phototube must be equipped with two
focusing eyepieces ("foc."), into one of which the eyepiece reticle is to be mounted.
