START-UP

Axio Imager Assembling the multidiscussion equipment Carl Zeiss

M70-2-0020 e 06/2009 430000-7344-001 53

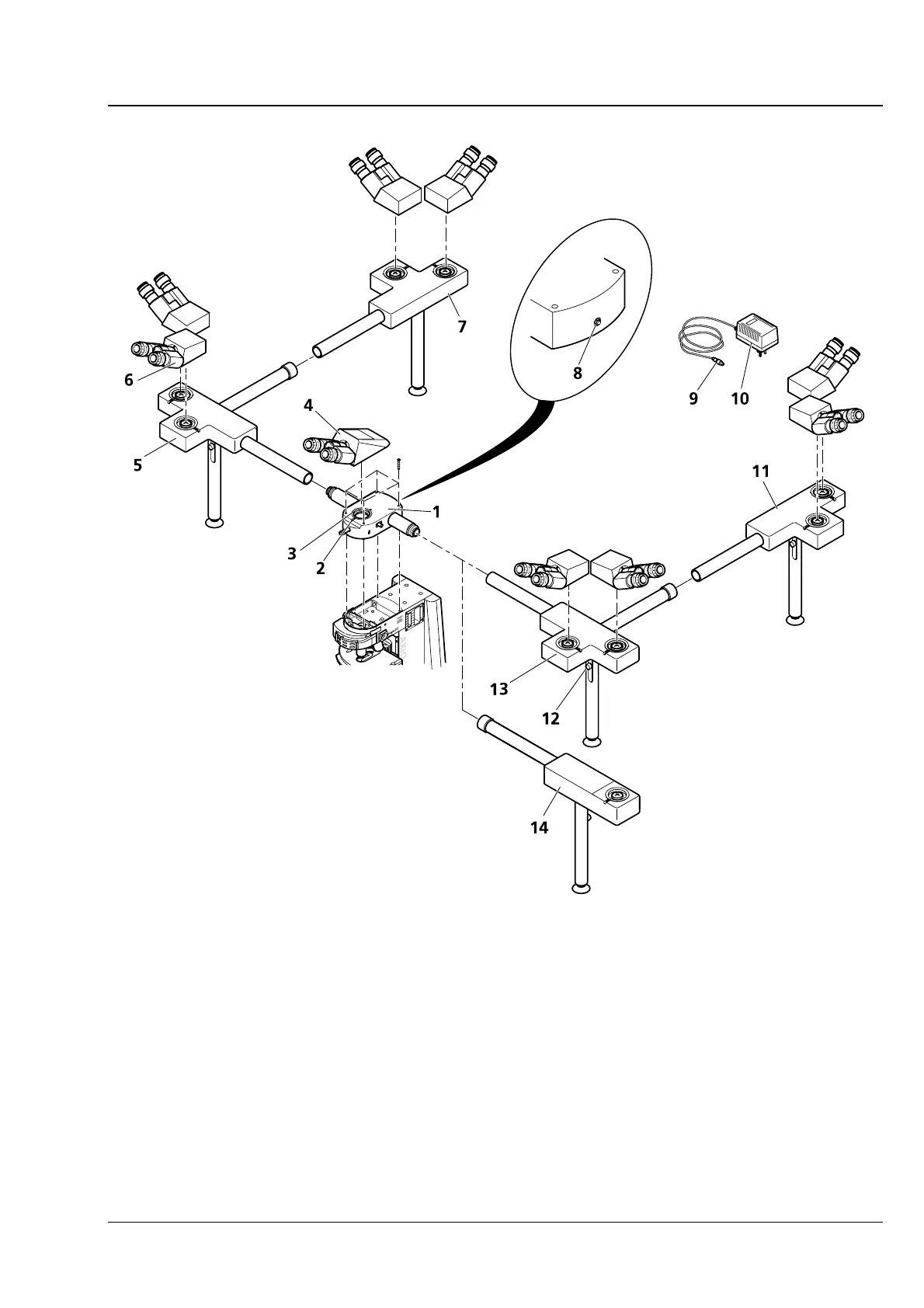

1 Multidiscussion equipment 6 Co-observer tube 11 End connector R

2 Clamping screw 7 End connector L 12 Setscrew

3 Dovetail 8 Connector for power supply 13 Connecting piece R

4 Binocular tube 9 Plug 14 High light-intensity extension arm

5 Connecting piece L 10 Plug-type power supply

Fig. 3-32 Assembling the multidiscussion equipment
