Using USB functions

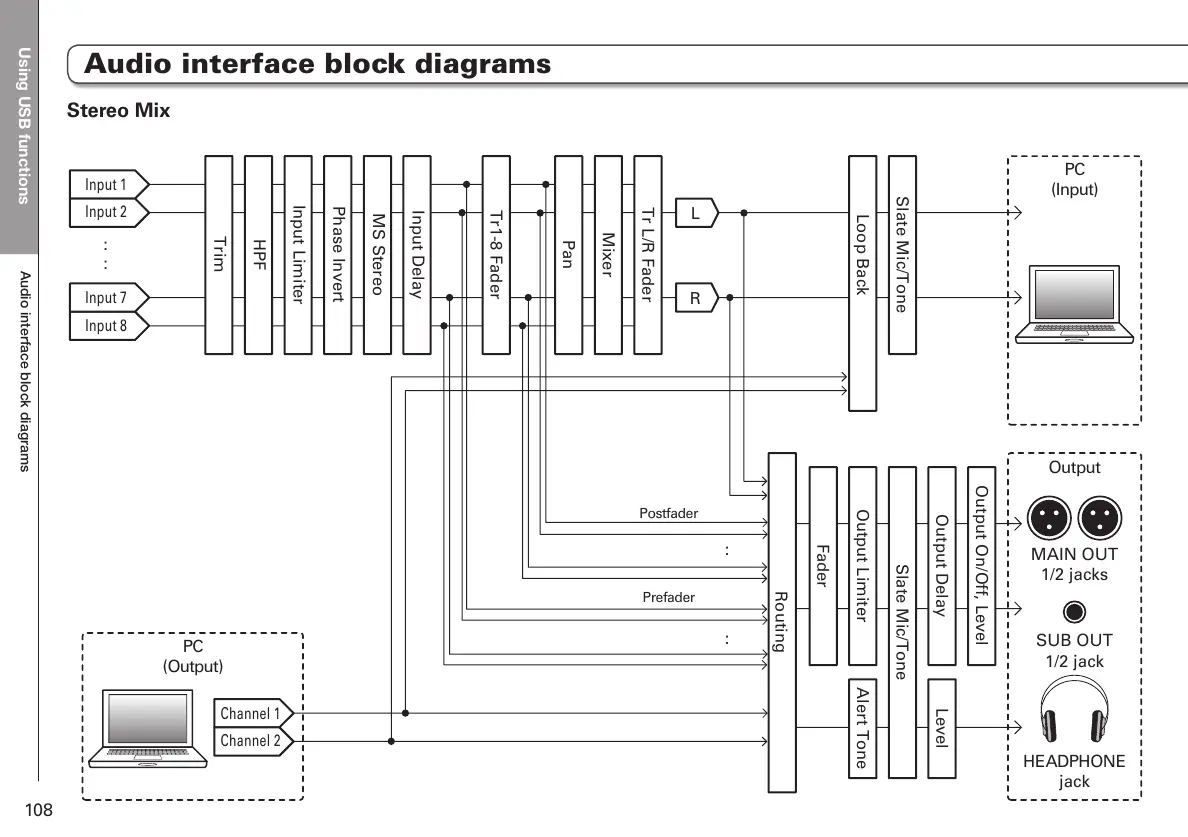

Audio interface block diagrams

108

Audio interface block diagrams

MAIN OUT

1/2 jacks

SUB OUT

1/2 jack

HEADPHONE

jack

(Input)

Output

(Output)

Trim

HPF

Input Limiter

Phase Invert

MS Stereo

Input Delay

Pan

Tr1-8 Fader

Mixer

Tr L/R Fader

Output Delay Level

Slate Mic/Tone

Output Limiter

Fader

Alert Tone

Slate Mic/Tone

Loop Back

Routing

Output On/Off, Level

Channel 1

Channel 2

Input 1

Input 2

Input 7

Input 8

Postfader

Prefader

Stereo Mix
