Zoom F8 User Manual

Input settings
,QSXWDQGRXWSXWVLJQDOñRZ
55

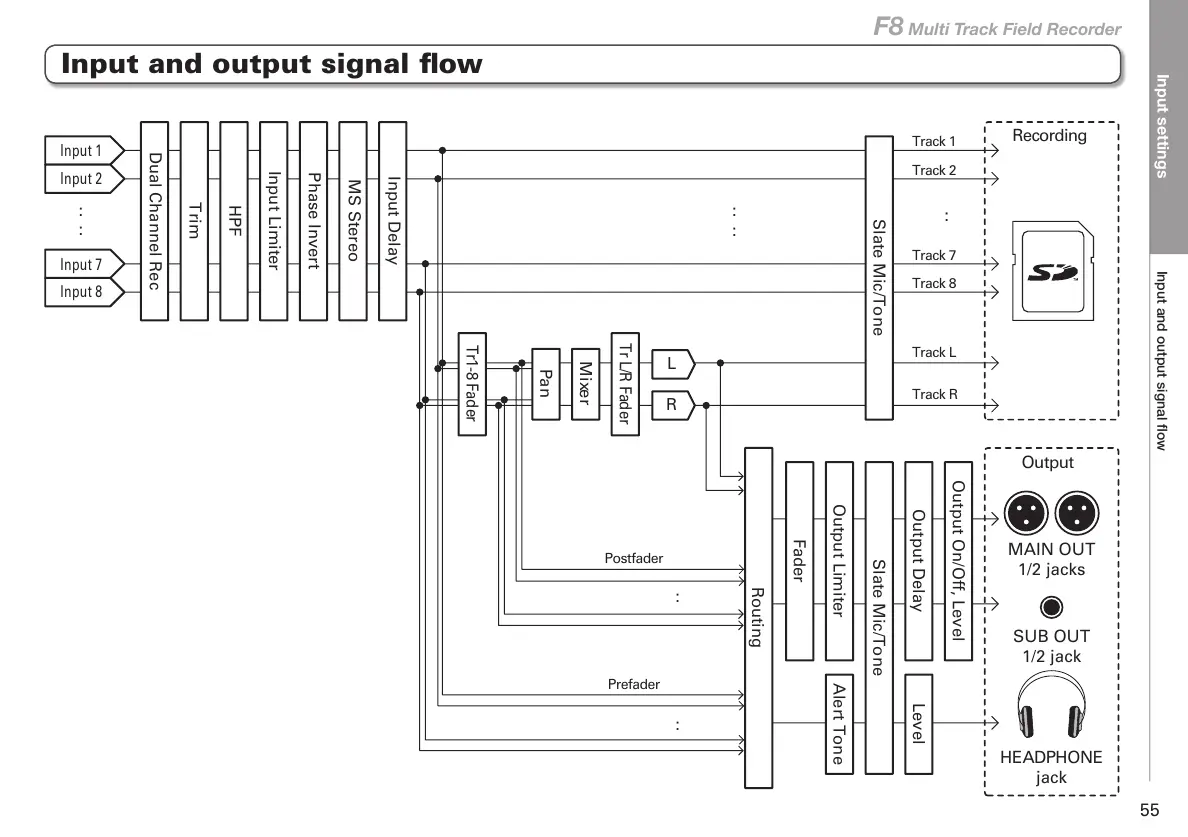

F8 Multi Track Field Recorder
Input and output signal flow
MAIN OUT
1/2 jacks
SUB OUT
1/2 jack
HEADPHONE
jack
Recording
Output
Input 1
:
:
Trim
HPF
Input Limiter
Phase Invert
MS Stereo
Input Delay
Tr1-8 Fader
Mixer
L
R
Output Delay Level
Slate Mic/Tone
Output Limiter
Fader
Alert Tone
Slate Mic/Tone
Tr L/R Fader
Routing
:
:
:
:
Output On/Off, Level
Pan
Dual Channel Rec
Input 2
Input 7
Input 8
Track 1
Track 2
Track 7
Track L
Track R
Postfader
Prefader
Track 8
:

Zoom F8 Specifications

General

Number of Channels	8
Bit Depth	16/24-bit
Inputs	8 x XLR/TRS combo jacks
Type	Field Recorder
Timecode	Yes
USB Interface	USB 2.0
Recording Format	WAV, BWF
Sample Rate	44.1/48/88.2/96/192 kHz
Media	SD/SDHC/SDXC cards
Power	AA batteries, AC adapter
Phantom Power	+24V/+48V
Display	2.4-inch full-color backlit LCD
