Zoom F8 User Manual

Output settings
Output Limiter
83
F8 Multi Track Field Recorder

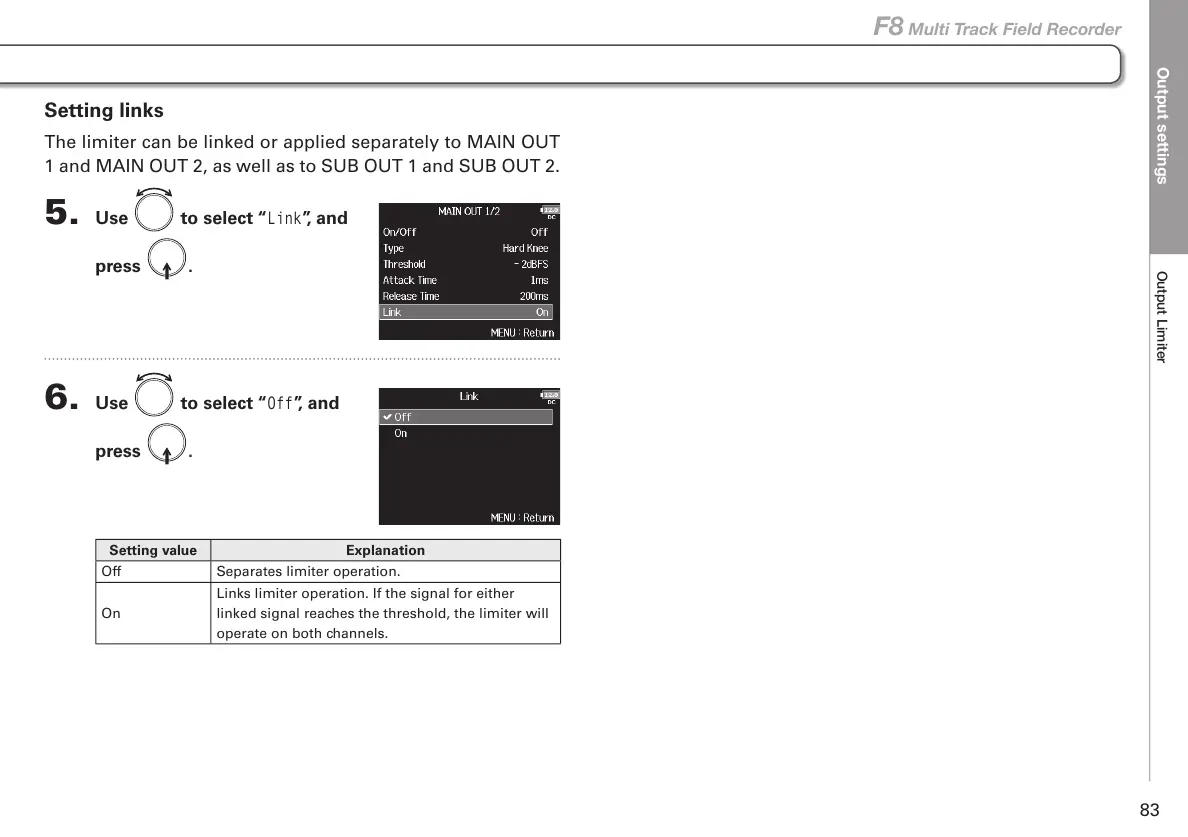

Setting links
The limiter can be linked or applied separately to MAIN OUT
1 and MAIN OUT 2, as well as to SUB OUT 1 and SUB OUT 2.
5. Use to select “ Link ”, and
press
.
6. Use to select “ Off ”, and
press
.
Setting value Explanation
Off Separates limiter operation.
On
Links limiter operation. If the signal for either
linked signal reaches the threshold, the limiter will
operate on both channels.

Zoom F8 Specifications

General

Number of Channels	8
Bit Depth	16/24-bit
Inputs	8 x XLR/TRS combo jacks
Type	Field Recorder
Timecode	Yes
USB Interface	USB 2.0
Recording Format	WAV, BWF
Sample Rate	44.1/48/88.2/96/192 kHz
Media	SD/SDHC/SDXC cards
Power	AA batteries, AC adapter
Phantom Power	+24V/+48V
Display	2.4-inch full-color backlit LCD
