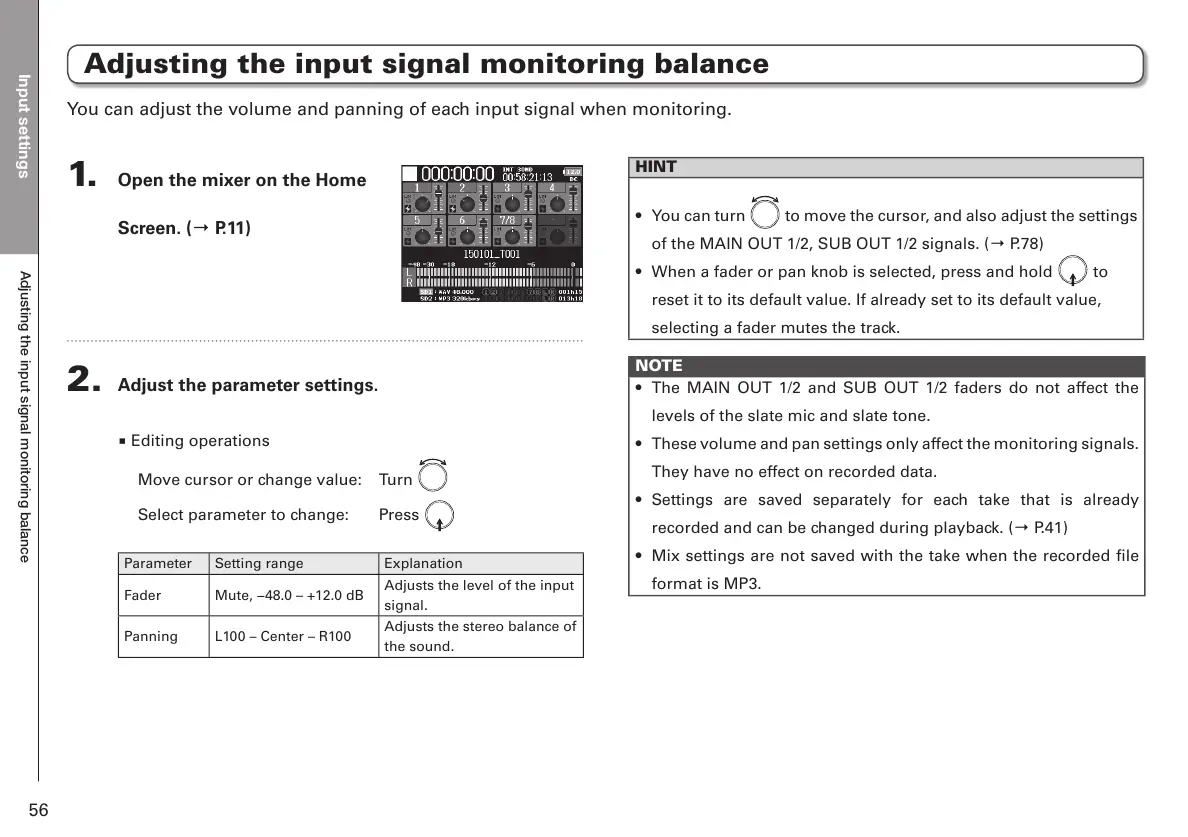

Input settings
Adjusting the input signal monitoring balance
56
Adjusting the input signal monitoring balance
1. Open the mixer on the Home
Screen. (Ο P.11)
2. Adjust the parameter settings.
π Editing operations
Move cursor or change value: Turn
Select parameter to change: Press
Parameter Setting range Explanation
Fader Mute, 48.0 – +12.0 dB
Adjusts the level of the input
signal.
Panning L100 – Center – R100
Adjusts the stereo balance of
the sound.
HINT
You can turn
to move the cursor, and also adjust the settings
of the MAIN OUT 1/2, SUB OUT 1/2 signals. (Ο P.78)
When a fader or pan knob is selected, press and hold to
reset it to its default value. If already set to its default value,
selecting a fader mutes the track.
NOTE
The MAIN OUT 1/2 and SUB OUT 1/2 faders do not affect the
levels of the slate mic and slate tone.
These volume and pan settings only affect the monitoring signals.
They have no effect on recorded data.
Settings are saved separately for each take that is already
recorded and can be changed during playback. (Ο P.41)
Mix settings are not saved with the take when the recorded file
format is MP3.
You can adjust the volume and panning of each input signal when monitoring.
