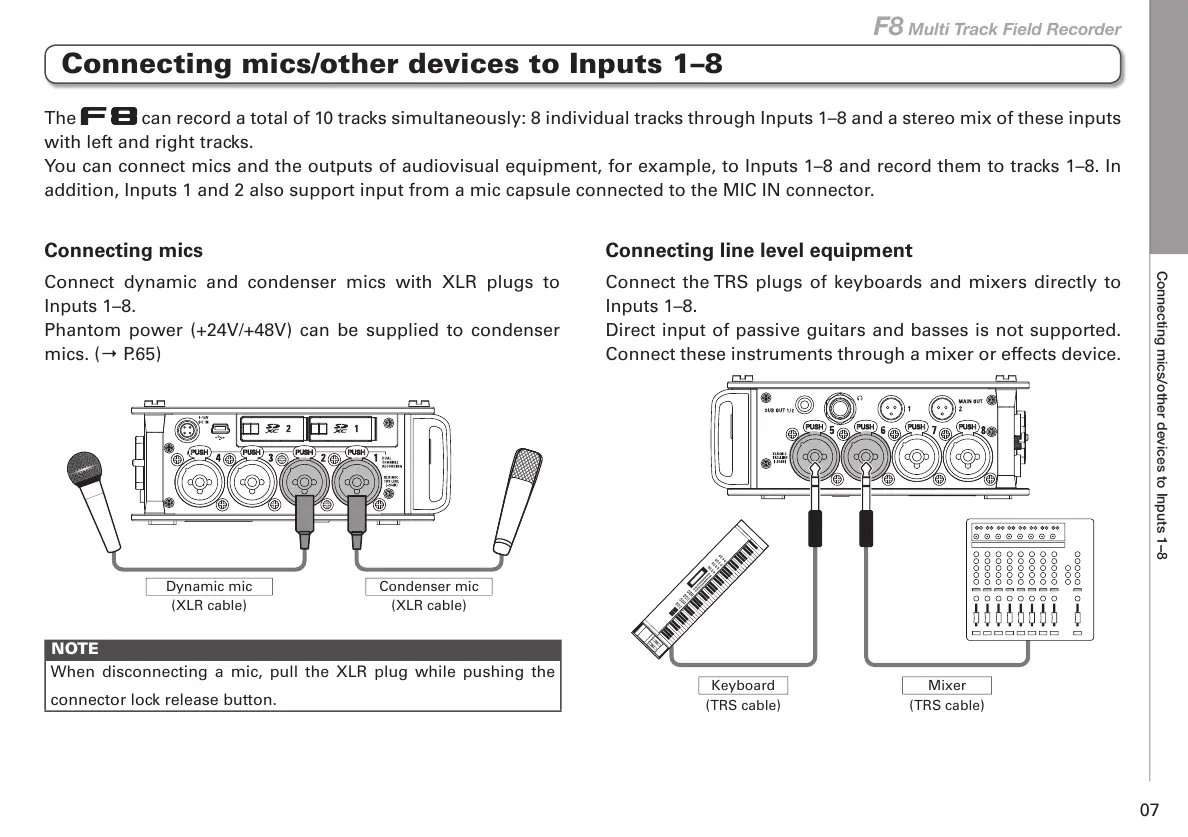

Connecting mics/other devices to Inputs 1–8
07
F8 Multi Track Field Recorder
Connecting mics
Connect dynamic and condenser mics with XLR plugs to
Inputs 1–8.
Phantom power (+24V/+48V) can be supplied to condenser
mics. (Ο P.65)
Dynamic mic
(XLR cable)
Condenser mic
(XLR cable)
NOTE
When disconnecting a mic, pull the XLR plug while pushing the
connector lock release button.
Connecting line level equipment
Connect the TRS plugs of keyboards and mixers directly to
Inputs 1–8.
Direct input of passive guitars and basses is not supported.
Connect these instruments through a mixer or effects device.
(TRS cable)
Keyboard
(TRS cable)
Mixer
The can record a total of 10 tracks simultaneously: 8 individual tracks through Inputs 1–8 and a stereo mix of these inputs
with left and right tracks.
You can connect mics and the outputs of audiovisual equipment, for example, to Inputs 1–8 and record them to tracks 1–8. In
addition, Inputs 1 and 2 also support input from a mic capsule connected to the MIC IN connector.
Connecting mics/other devices to Inputs 1–8
