Zoom F8 User Manual

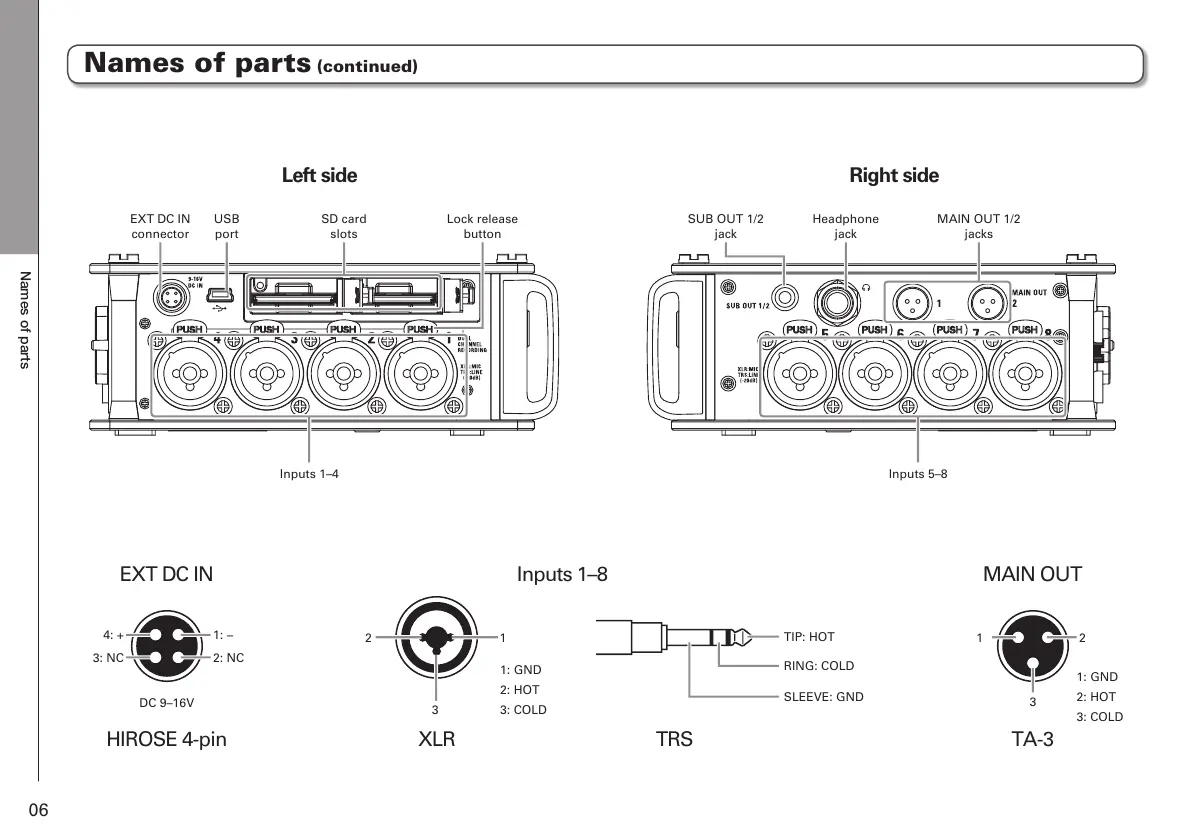

Names of parts
06
Left side
Inputs 1–8EXT DC IN MAIN OUT
XLR TA-3TRS
Right side
1: GND
2: HOT
3: COLD
1: GND
2: HOT
3: COLD
DC 9–16V
HIROSE 4-pin
TIP: HOT
RING: COLD
SLEEVE: GND
EXT DC IN
connector
SUB OUT 1/2
jack
Headphone
jack
USB
port
SD card
slots
Inputs 5–8
Inputs 1–4
MAIN OUT 1/2
jacks
Lock release
button
12
1: −4: +
2: NC3: NC
21
3
3
Names of parts (continued)

Zoom F8 Specifications

General

Number of Channels	8
Bit Depth	16/24-bit
Inputs	8 x XLR/TRS combo jacks
Type	Field Recorder
Timecode	Yes
USB Interface	USB 2.0
Recording Format	WAV, BWF
Sample Rate	44.1/48/88.2/96/192 kHz
Media	SD/SDHC/SDXC cards
Power	AA batteries, AC adapter
Phantom Power	+24V/+48V
Display	2.4-inch full-color backlit LCD
