Zoom F8 User Manual

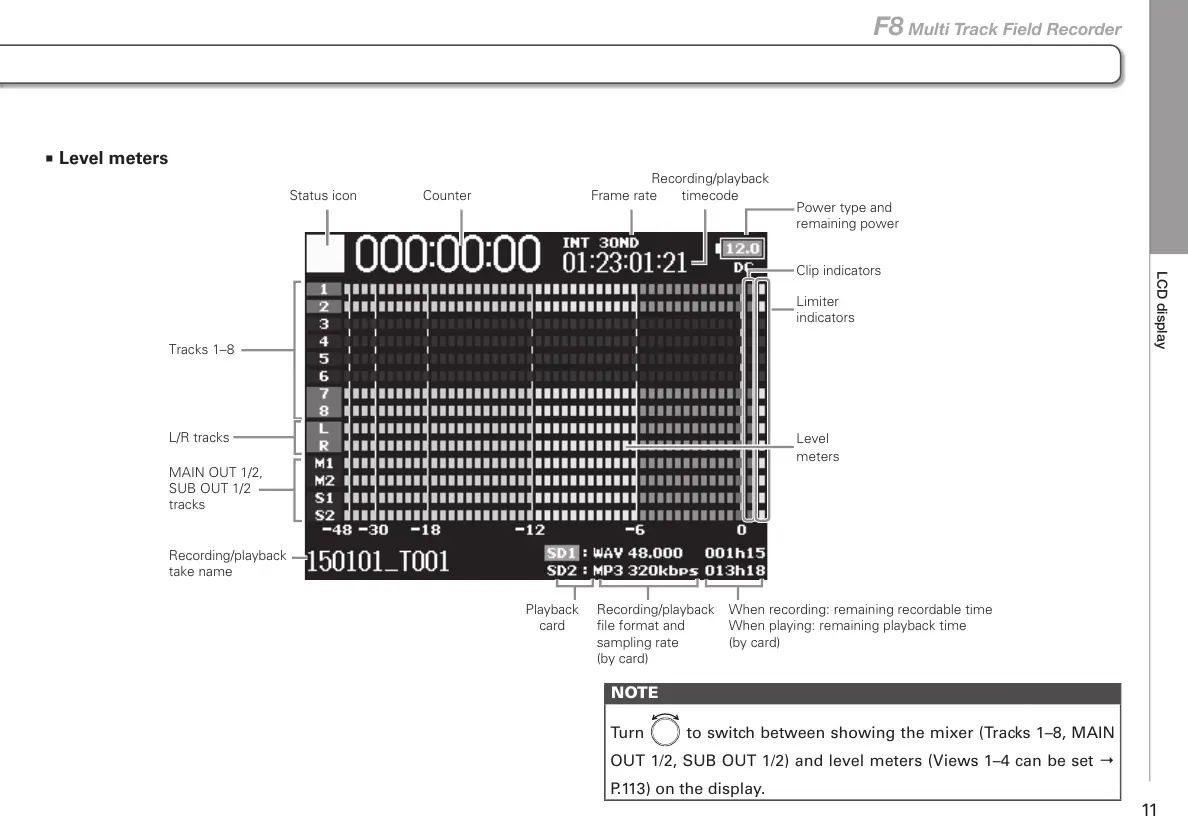

LCD display
11
F8 Multi Track Field Recorder
Power type and
remaining power
Limiter
indicators
Tracks 1–8
MAIN OUT 1/2,
SUB OUT 1/2
tracks
L/R tracks
Level
meters
Status icon Counter Frame rate
Recording/playback
timecode
Recording/playback
take name
Playback
card
Recording/playback
file format and
sampling rate
(by card)
When recording: remaining recordable time
When playing: remaining playback time
(by card)
Clip indicators
π Level meters
NOTE
Turn
to switch between showing the mixer (Tracks 1–8, MAIN
OUT 1/2, SUB OUT 1/2) and level meters (Views 1–4 can be set Ο
P.113) on the display.

Zoom F8 Specifications

General

Number of Channels	8
Bit Depth	16/24-bit
Inputs	8 x XLR/TRS combo jacks
Type	Field Recorder
Timecode	Yes
USB Interface	USB 2.0
Recording Format	WAV, BWF
Sample Rate	44.1/48/88.2/96/192 kHz
Media	SD/SDHC/SDXC cards
Power	AA batteries, AC adapter
Phantom Power	+24V/+48V
Display	2.4-inch full-color backlit LCD
