Zte ZXA10 C300 - Chapter 3 CES Service Configuration; Figure 3-1 Configuration Flowchart of the GPON CES Service

To Next Page

To Previous Page

Chapter3CESServiceConguration

ItemData

ONUCESservicechannelName:tdm

Priority:7

VLANID:40

ONUPWType:E1Satop

Tx-ECID:0x1102

Rx-ECID:0x1102

Priority:7

VID:40

•Youneedtoconfigure6MbpsfixedupstreambandwidthforeachchannelofE1servicetoensure

thequalityofservice.

CongurationFlowchart

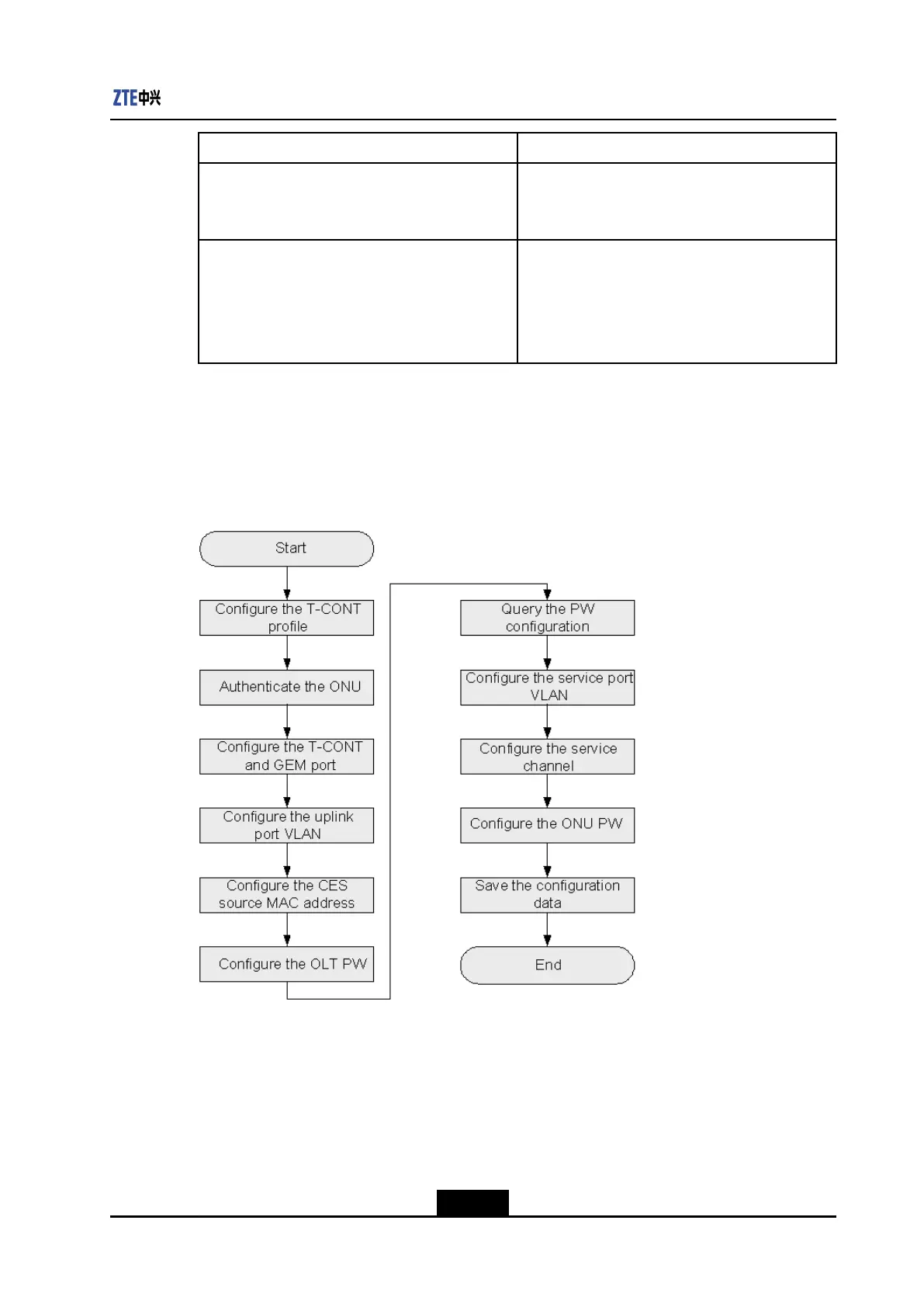

Figure3-1showsthecongurationowchartoftheGPONCESservice.

Figure3-1CongurationFlowchartoftheGPONCESService

Steps

1.InGPONcongurationmode,conguretheT-CONTbandwidthprole.

ZXAN(config)#gpon

ZXAN(config-gpon)#profiletcont6Mtype1fixed6000

[Successful]

ZXAN(config-gpon)#exit

3-3

SJ-20130520164529-007|2013-06-30(R1.0)ZTEProprietaryandCondential
