Chapter 1 Introducing the Zyxel Device
VMG/EMG/AM/DM/GM Series User’s Guide
22
switch over a telephone line (T) using the G.fast technology. Your home devices can access the Internet
by connecting to the Zyxel Device through Ethernet cables (E).

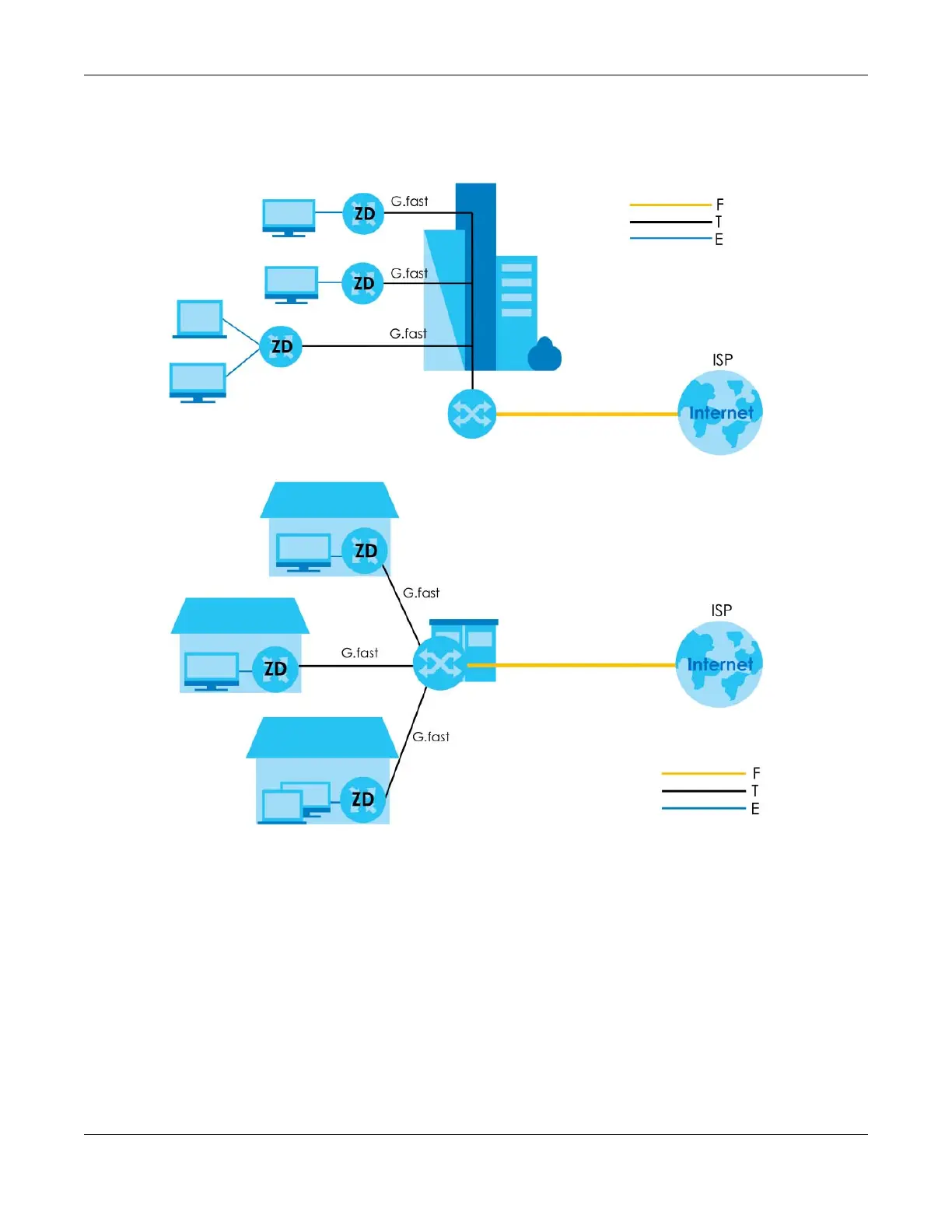

Figure 2 Fiber-To-The-Building (FTTB) with G.fast (GM series)
Figure 3 Fiber-To-The-Curb (FTTC) with G.fast
Connect computers to the Zyxel Device’s LAN ports or wirelessly.
Ethernet (EMG Series)
For the EMG series, connect the Ethernet WAN port to a broadband modem or router through an
Ethernet cable for Internet connection. You can have gigabit Internet access by connecting the DSL
port to the DSL or MODEM jack on a splitter or your telephone jack for G.fast.
For the VMG/DM series, if you prefer not to use a DSL line and you have another broadband modem or
router (such as ADSL) available, you can use the Ethernet WAN port and then connect it to the
broadband modem or router.
