12.5 QoS Classification Setup
Use this screen to add, edit or delete QoS classifiers. A classifier groups traffic into data flows according
to specific criteria such as the source address, destination address, source port number, destination port
number or incoming interface. For example, you can configure a classifier to select traffic from the
same protocol port (such as Telnet) to form a flow.
You can give different priorities to traffic that the Zyxel Device forwards through the WAN interface. Give
high priority to voice and video to make them run more smoothly. Similarly, give low priority to many
large file downloads so that they do not reduce the quality of other applications.
Click Network Setting > QoS > Classification Setup to open the following screen.

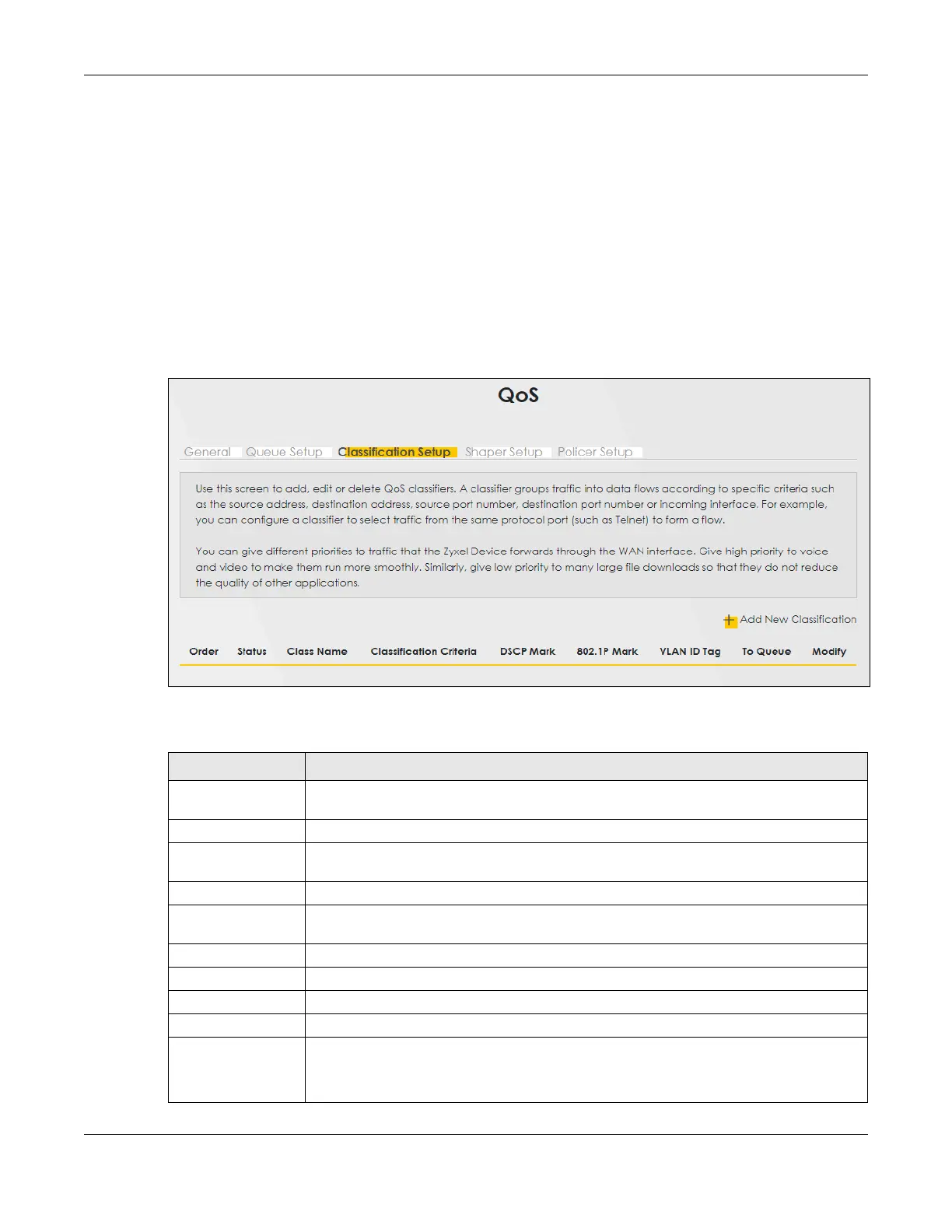

Figure 152 Network Setting > QoS > Classification Setup
The following table describes the labels in this screen.
Table 78 Network Setting > QoS > Classification Setup
LABEL DESCRIPTION
Add New
Classification
Click this to create a new classifier.
Order This is the index number of the entry. The classifiers are applied in order of their numbering.
Status This field displays whether the classifier is active or not. A yellow bulb signifies that this
classifier is active. A gray bulb signifies that this classifier is not active.
Class Name This is the name of the classifier.
Classification
Criteria
This shows criteria specified in this classifier, for example the interface from which traffic of
this class should come and the source MAC address of traffic that matches this classifier.
DSCP Mark This is the DSCP number added to traffic of this classifier.
802.1P Mark This is the IEEE 802.1p priority level assigned to traffic of this classifier.
VLAN ID Tag This is the VLAN ID number assigned to traffic of this classifier.
To Queue This is the name of the queue in which traffic of this classifier is put.
Modify Click the Edit icon to edit the classifier.
Click the Delete icon to delete an existing classifier. Note that subsequent rules move up by
one when you take this action.
