Chapter 12 Quality of Service (QoS)
VMG/EMG/AM/DM/GM Series User’s Guide
290

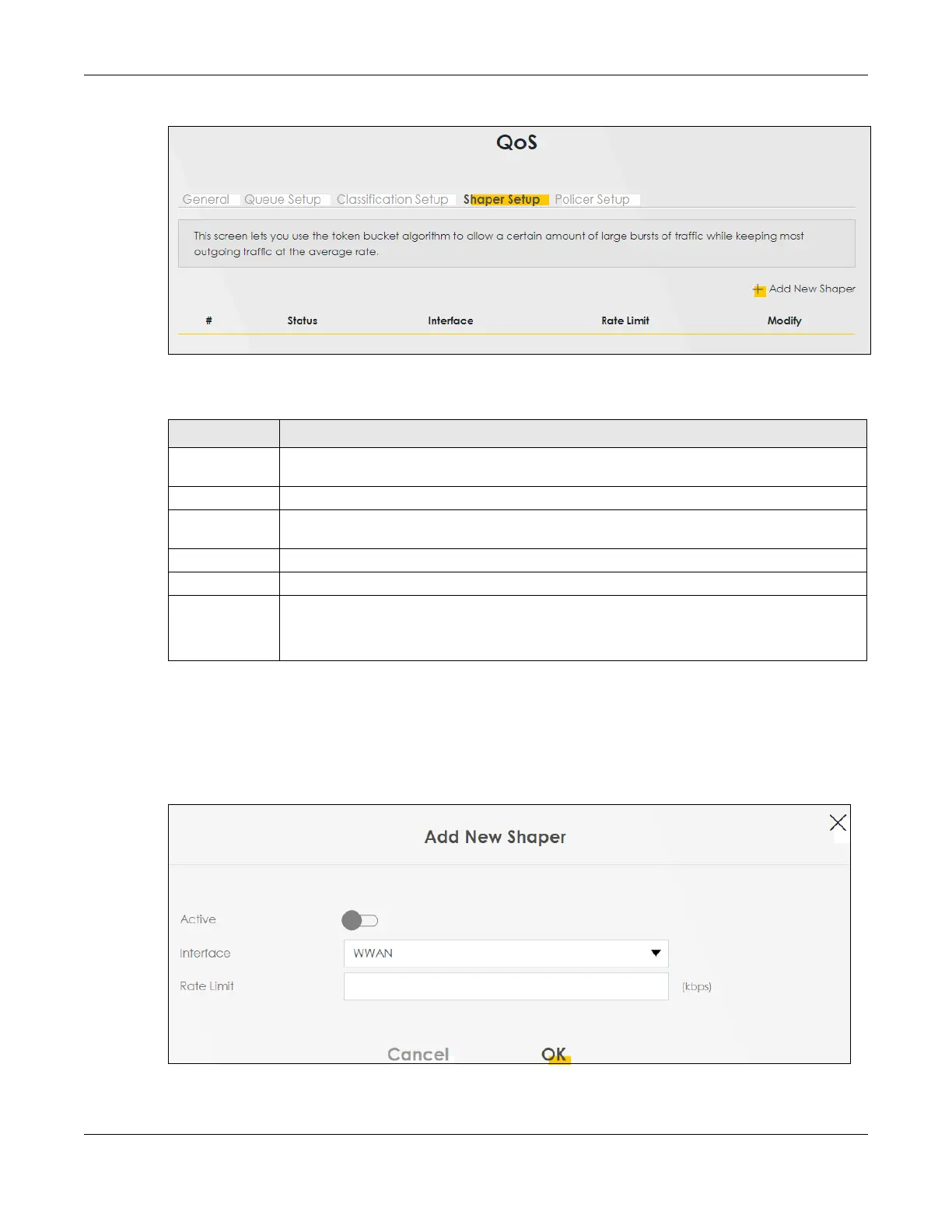

Figure 158 Network Setting > QoS > Shaper Setup
The following table describes the labels in this screen.
12.6.1 Add or Edit a QoS Shaper
Click Add New Shaper in the Shaper Setup screen or the Edit icon next to a shaper to show the following
screen.
Figure 159 Network Setting > QoS > Shaper Setup > Add New Shaper/Edit
Table 80 Network Setting > QoS > Shaper Setup
LABEL DESCRIPTION
Add New
Shaper
Click this to create a new entry.
# This is the index number of the entry.
Status This field displays whether the shaper is active or not. A yellow bulb signifies that this policer is
active. A gray bulb signifies that this shaper is not active.
Interface This shows the name of the Zyxel Device's interface through which traffic in this shaper applies.
Rate Limit This shows the average rate limit of traffic bursts for this shaper.
Modify Click the Edit icon to edit the shaper.
Click the Delete icon to delete an existing shaper. Note that subsequent rules move up by one
when you take this action.
