3.2.1.3 Dashboard
Use the menu items in the navigation panel on the right to open screens to configure the Zyxel Device’s
features.

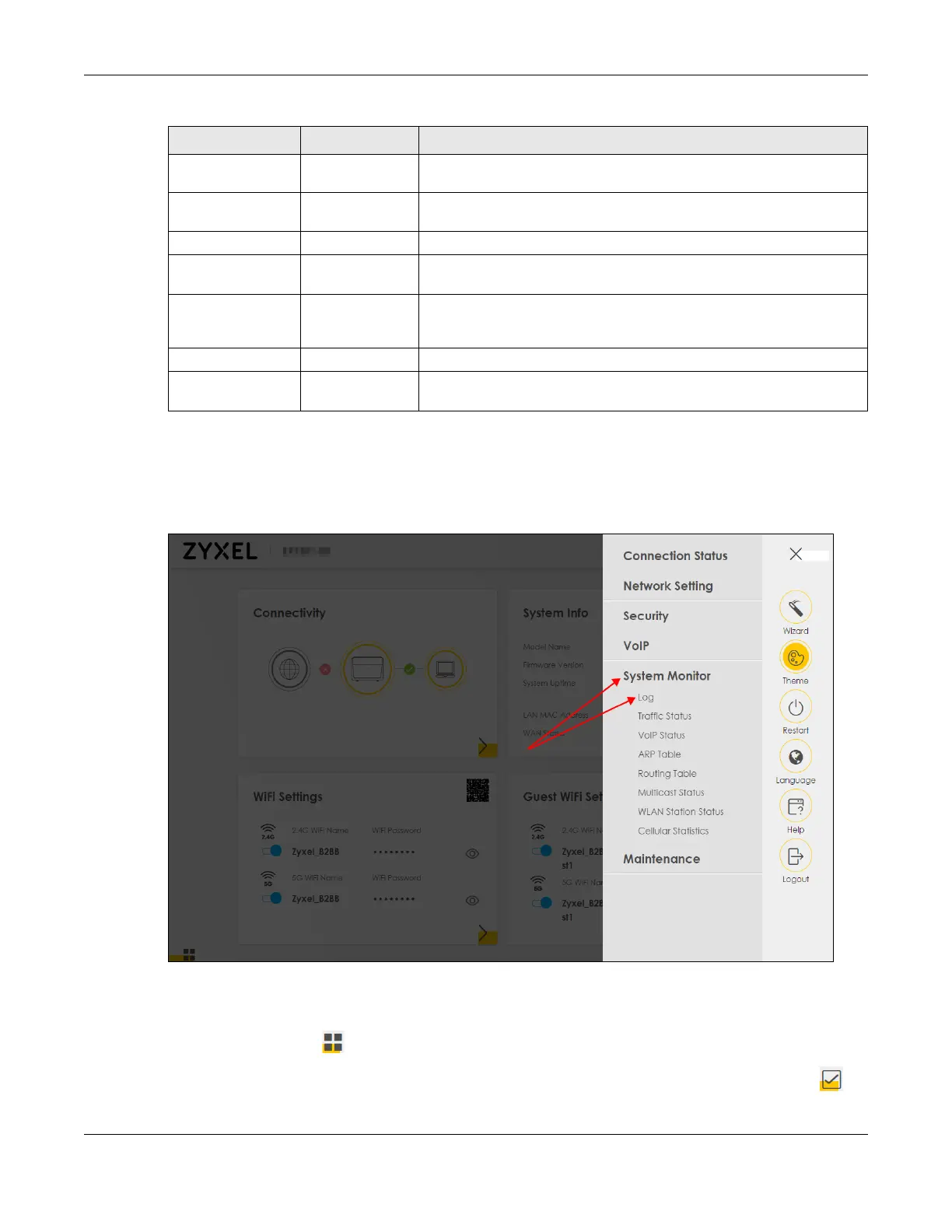

Figure 51 Navigation Panel
3.2.2 Widget Icon
Click the Widget icon ( ) in the lower left corner to arrange the screen order.
The following screen appears. Select a block and hold it to move around. Click the Check icon ( ) in
the lower left corner to save the changes.
Firmware
Upgrade
Firmware
Upgrade
Use this screen to upload firmware to your Zyxel Device.
Backup/Restore Backup/Restore Use this screen to backup and restore your Zyxel Device’s configuration
(settings) or reset the factory default settings.
Reboot Reboot Use this screen to reboot the Zyxel Device without turning the power off.
Diagnostic Ping&Traceroute
&Nslookup
Use this screen to identify problems with the Zyxel Device. You can use
Ping, TraceRoute, or Nslookup to help you identify problems.
802.1ag Use this screen to configure CFM (Connectivity Fault Management) MD
(maintenance domain) and MA (maintenance association), perform
connectivity tests and view test reports.
802.3ah Use this screen to configure link OAM port parameters,
OAM Ping Use this screen to view information to help you identify problems with the
DSL connection.
Table 15 Navigation Panel Summary – GM4100-B0 (continued)
LINK TAB FUNCTION
