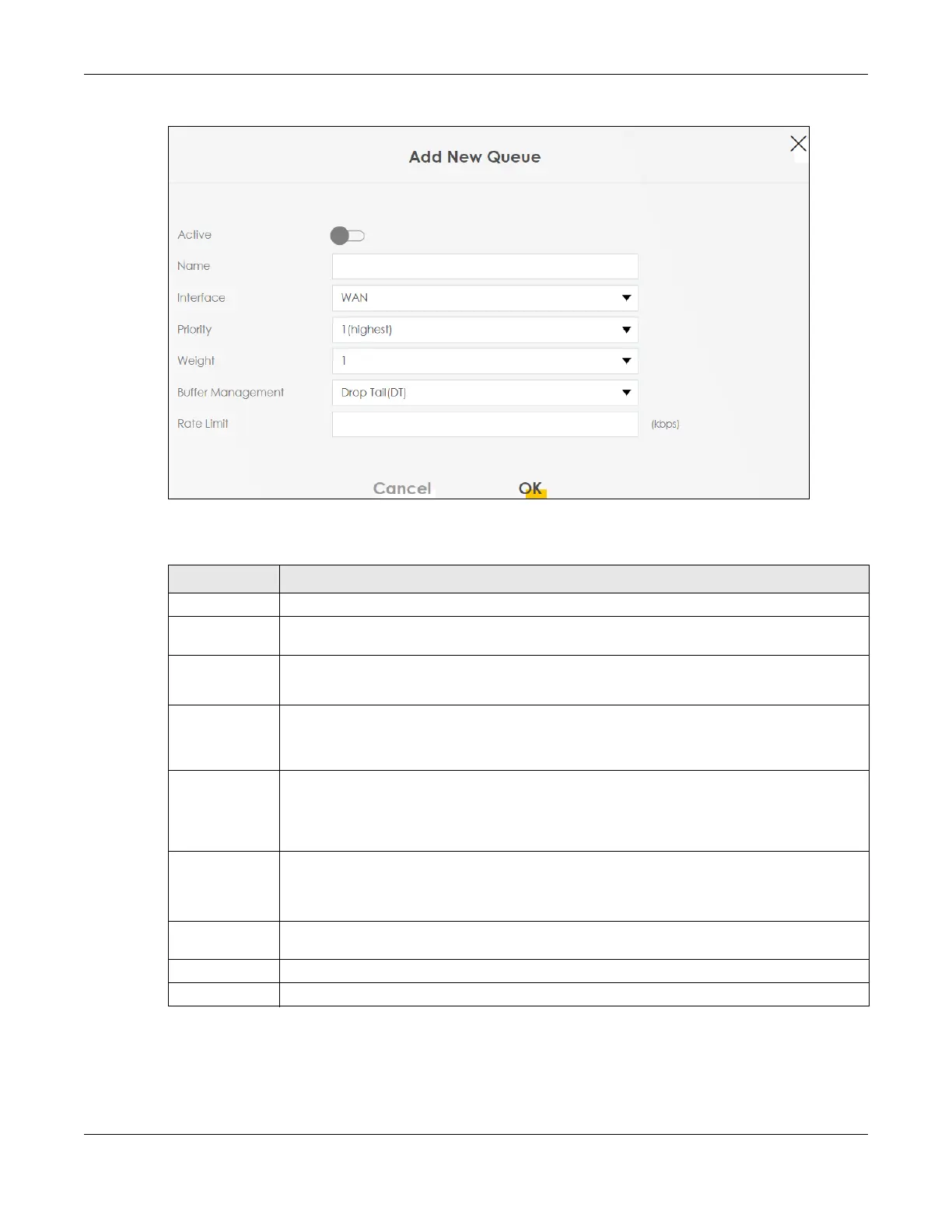

Figure 151 Network Setting > QoS > Queue Setup > Add New Queue/Edit
The following table describes the labels in this screen.
Table 77 Network Setting > QoS > Queue Setup > Add New Queue/Edit
LABEL DESCRIPTION
Active Click this switch to enable the queue.
Name Enter a descriptive name for this queue. You can use up to 32 printable characters except [ " ], [
` ], [ ' ], [ < ], [ > ], [ ^ ], [ $ ], [ | ], [ & ], or [ ; ]. Spaces are allowed.
Interface Select the interface to which this queue is applied.
This field is read-only if you are editing the queue.
Priority Select the priority level (from 1 to 8) of this queue.
The smaller the number, the higher the priority level. Traffic assigned to higher priority queues
gets through faster while traffic in lower priority queues is dropped if the network is congested.
Weight Select the weight (from 1 to 8) of this queue.
If two queues have the same priority level, the Zyxel Device divides the bandwidth across the
queues according to their weights. Queues with larger weights get more bandwidth than
queues with smaller weights.
Buffer
Management
This field displays Drop Tail (DT). Drop Tail (DT) is a simple queue management algorithm that
allows the Zyxel Device buffer to accept as many packets as it can until it is full. Once the buffer
is full, new packets that arrive are dropped until there is space in the buffer again (packets are
transmitted out of it).
Rate Limit Specify the maximum transmission rate (in Kbps) allowed for traffic on this queue. If you enter 0
here, this means there's no rate limit on this queue.
Cancel Click Cancel to exit this screen without saving.
OK Click OK to save your changes.
