Chapter 2 Hardware
VMG/EMG/AM/DM/GM Series User’s Guide
55

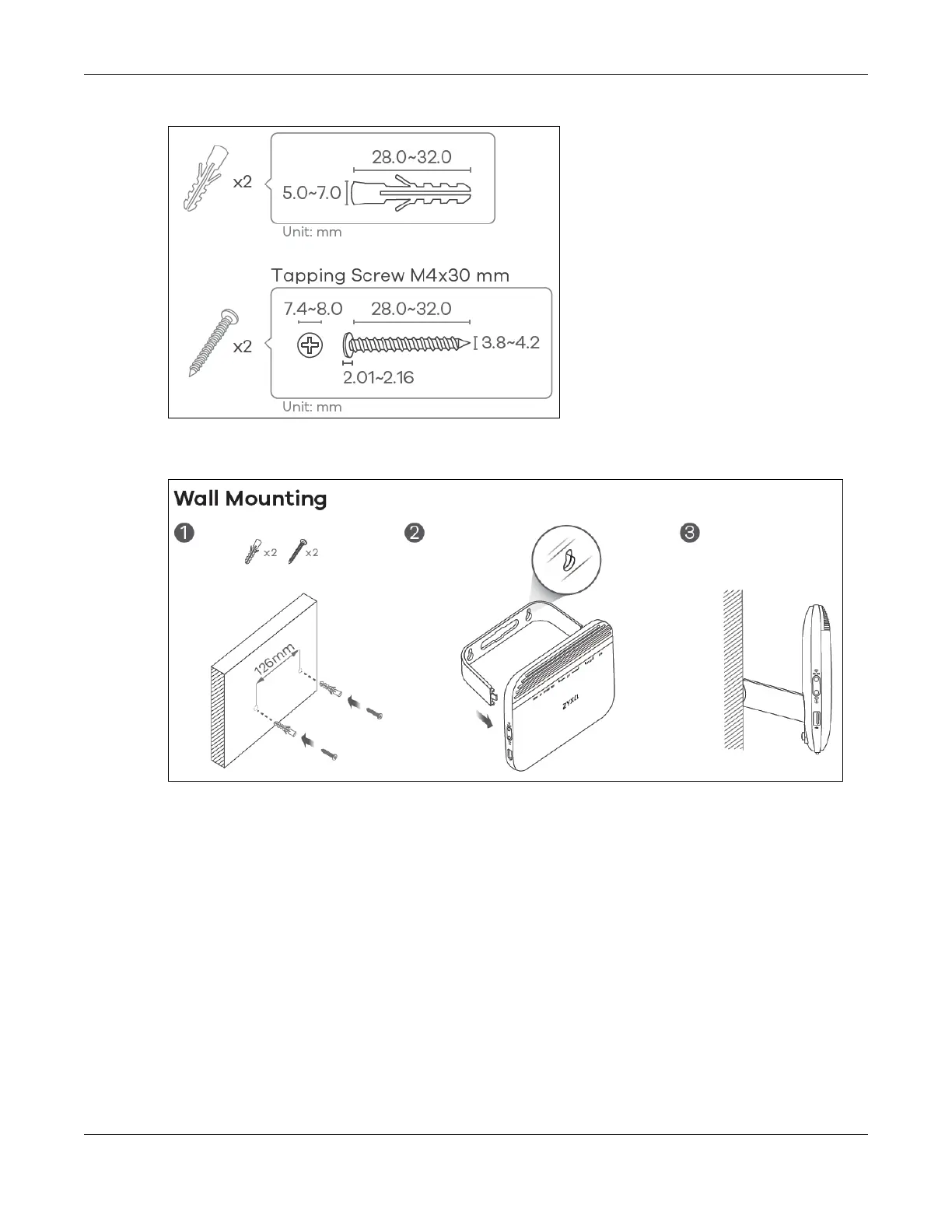

Figure 44 Wall Mounting Screw Specifications
3 Use the holes on the bottom of the Zyxel Device to hang the Zyxel Device on the screws.
Figure 45 Wall Mounting Procedures
Note: Wall-mount the Zyxel Device vertically. Attach the bracket to your Zyxel Device with the
bracket holes facing down.
Note: Make sure the screws are securely fixed to the wall and strong enough to hold the
weight of the Zyxel Device with the connection cables.
