ABB AC 800M

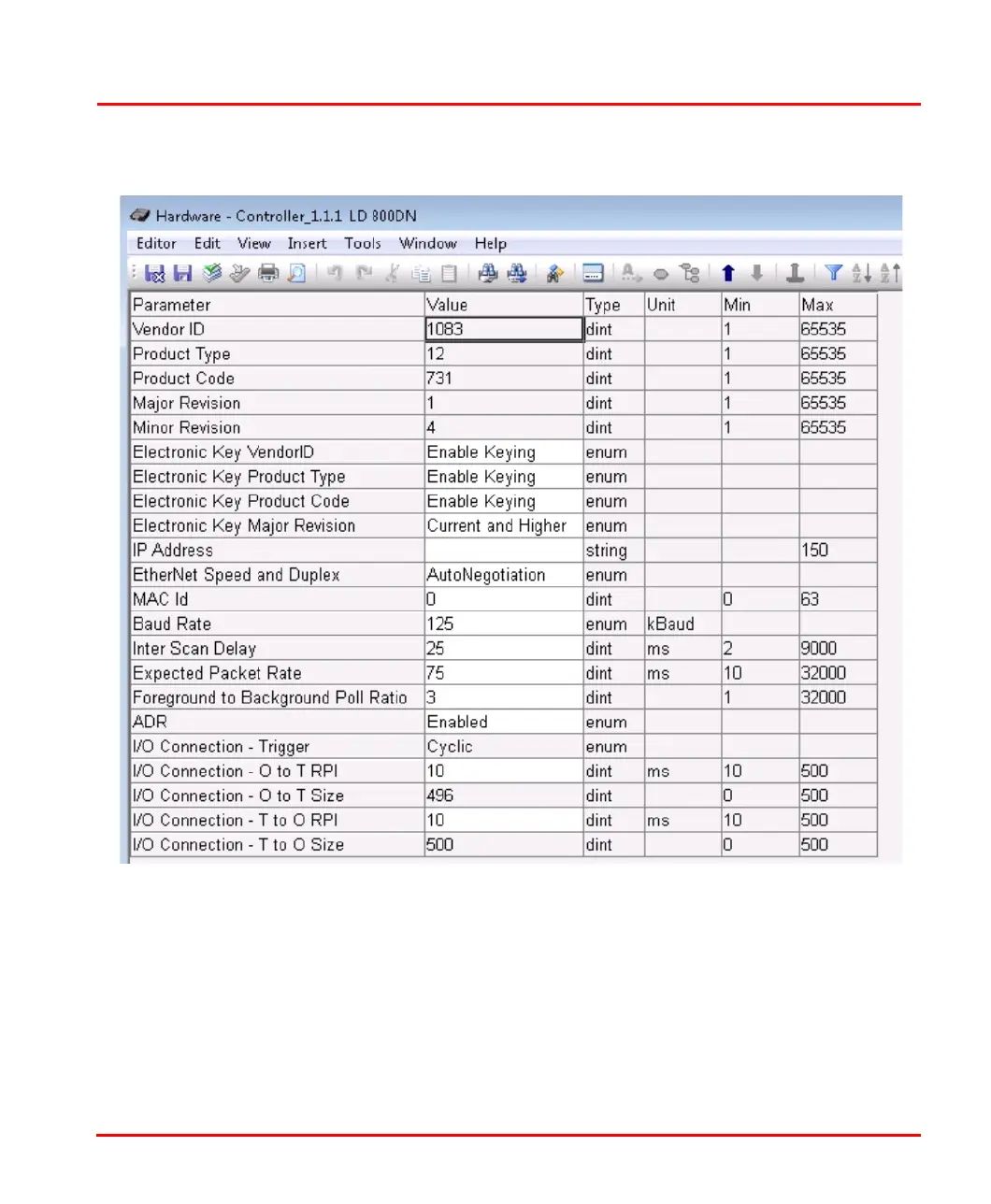

Figure 51. Hardware Editor – Settings for LD 800DN
Section 4 Configuration Configuring LD 800DN Linking Device Unit
9ARD000014-600 A 111
The Hardware Editor contains three tabs — Settings, Connections and Unit Status.
The parameters for configuring the LD 800DN Linking Device Unit are found in the
Settings tab. Configure the parameters according to the description of parameters
given in Table 17.
