Section 6 Linking Device LD 800DN BridgeWay Configuration Tool
9ARD000014-600 A 175
Starting BridgeWay Configuration
Ensure that the LD 800DN module is powered and connected to the PC serial port.
Select Start > BridgeWay Configuration, to run the BridgeWay Configuration
tool.
When BridgeWay Configuration is launched, it attempts to locate a LD 800DN
module on one of the PC serial ports. After locating the module, the status area of
the tool displays the type and the status of that module.
If module is not connected to the PC or if it is powered off, the status area indicates
that no module is detected. If the module is powered off, switch it on and ensure that
the connection is proper. Then, click Refresh icon on the BridgeWay Configuration
tool bar.
BridgeWay Configuration User Interface
Figure 64 shows the BridgeWay Configuration user interface.

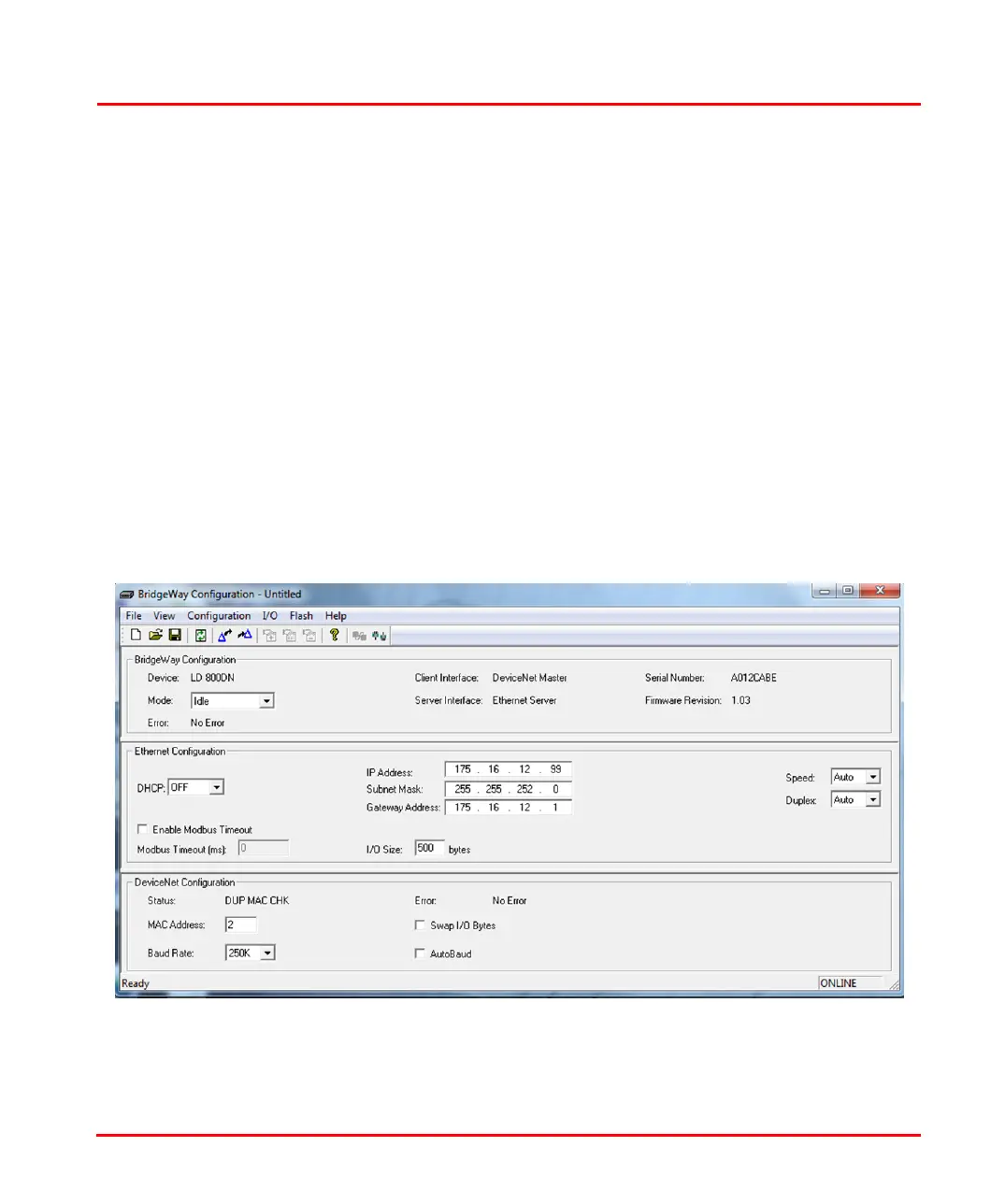

Figure 64. BridgeWay Configuration User Interface
