ABB AC 800M

Section 6 Linking Device LD 800DN IP Address and MAC ID Configuration for LD 800DN
9ARD000014-600 A 181
IP Address Initialization

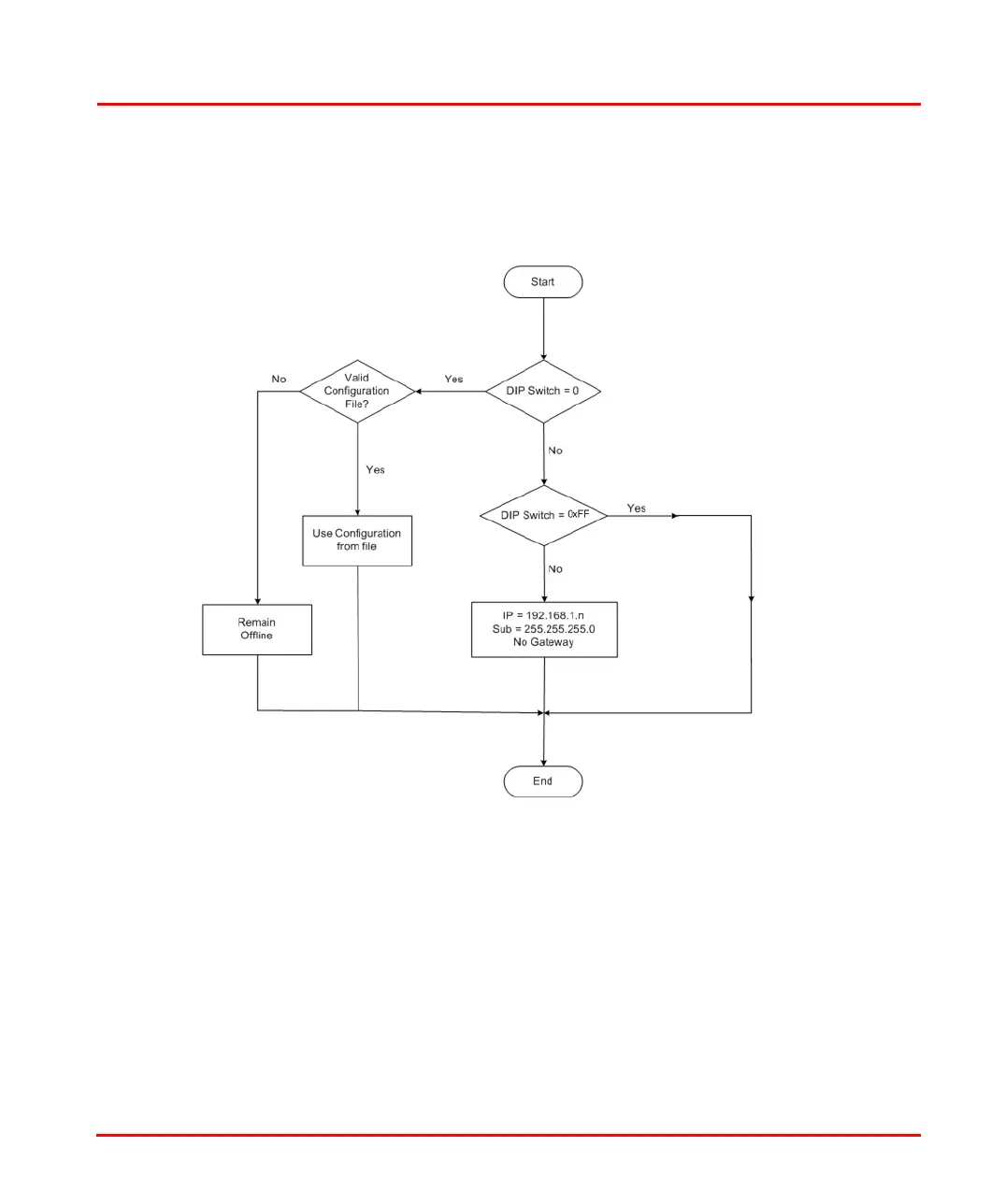

Figure 68 shows a flowchart that describes how the IP configuration is determined
when the LD 800DN is powered up.
Figure 68. IP configuration
